Custom Platform Lifts for Waterfront Design and Vessel Support

Highly customized lift systems engineered around the vessel, platform, structure, and site.

Neptune Platform Lifts are custom-engineered lift systems designed for waterfront properties where vessel support, deck-level appearance, access, and site-specific design all matter. Each system is configured around the application, including vessel requirements, platform size, piling layout, structural needs, decking, access, and waterfront conditions.

Request a Lift Consultation

Deck-Level Platform Lift Systems for Boats, Multiple PWCs, and Luxury Waterfronts

Unlike a standard boat lift that raises a vessel on bunks alone, a platform lift can be designed around a full platform frame, giving owners more flexibility for storage, access, boarding, cleaning, and waterfront use. For luxury homes, marina settings, and custom dock projects, Neptune Platform Lifts offer a refined way to store vessels while preserving the look and function of the property.

Neptune offers both Stealth Invisible Top Beam Platform Lifts and Standard Top Beam Platform Lifts, with custom platform sizes, decking options, catwalk framing, and sternwalk configurations available depending on the project.

Custom Platform Lift Systems

Built around the application — not selected from a standard layout.

Platform Lifts are among Neptune’s most customized lift systems. The final design depends on the vessel or intended use, platform size, structure, piling layout, travel requirements, access needs, decking, and installation conditions.

Rather than fitting every project into a preset product category, Neptune evaluates the full application and configures the lift around the real-world requirements of the site.

Common design considerations may include:

  • Vessel or load requirements

  • Platform size and layout

  • Piling placement and structural support

  • Decking selection

  • Catwalk, sternwalk, or access needs

  • Drive system and electrical requirements

  • Travel requirements

  • Site and installation conditions

  • Desired appearance when the lift is raised or lowered

Stealth Invisible Top Beam Platform Lift

Concealed structure for a cleaner deck-level appearance.

Neptune Stealth Platform Lifts are designed with sealed Direct Drive gearboxes, stainless motors, and SEArmor winders encased within the top rail frame for a flush-mounted, deck-level installation.

The value of the Stealth design is simple: it conceals key lift structure within the platform frame to help create a cleaner finished appearance. This makes the lift feel more integrated into the waterfront design while still being engineered around the vessel, structure, and site requirements.

Standard Top Beam Platform Lifts

Standard Top Beam Platform Lifts use top beams mounted above deck level. This configuration may be considered when the project requirements, structure, access needs, or budget make a standard platform configuration the better fit.

Like Stealth systems, Standard Top Beam Platform Lifts are custom-configured around the application rather than selected from one fixed layout.

Designed Around Platform Size, Structure, Decking, and Access

Every Platform Lift project starts with the physical site and how the platform will be used. Platform size, piling layout, structural requirements, decking selection, and access needs all influence the final design.

Neptune Platform Lifts can be configured with platform framing and decking selected around the project, along with catwalk and sternwalk framing systems where appropriate. Final design should be reviewed with Neptune or an authorized dealer based on the specific application.

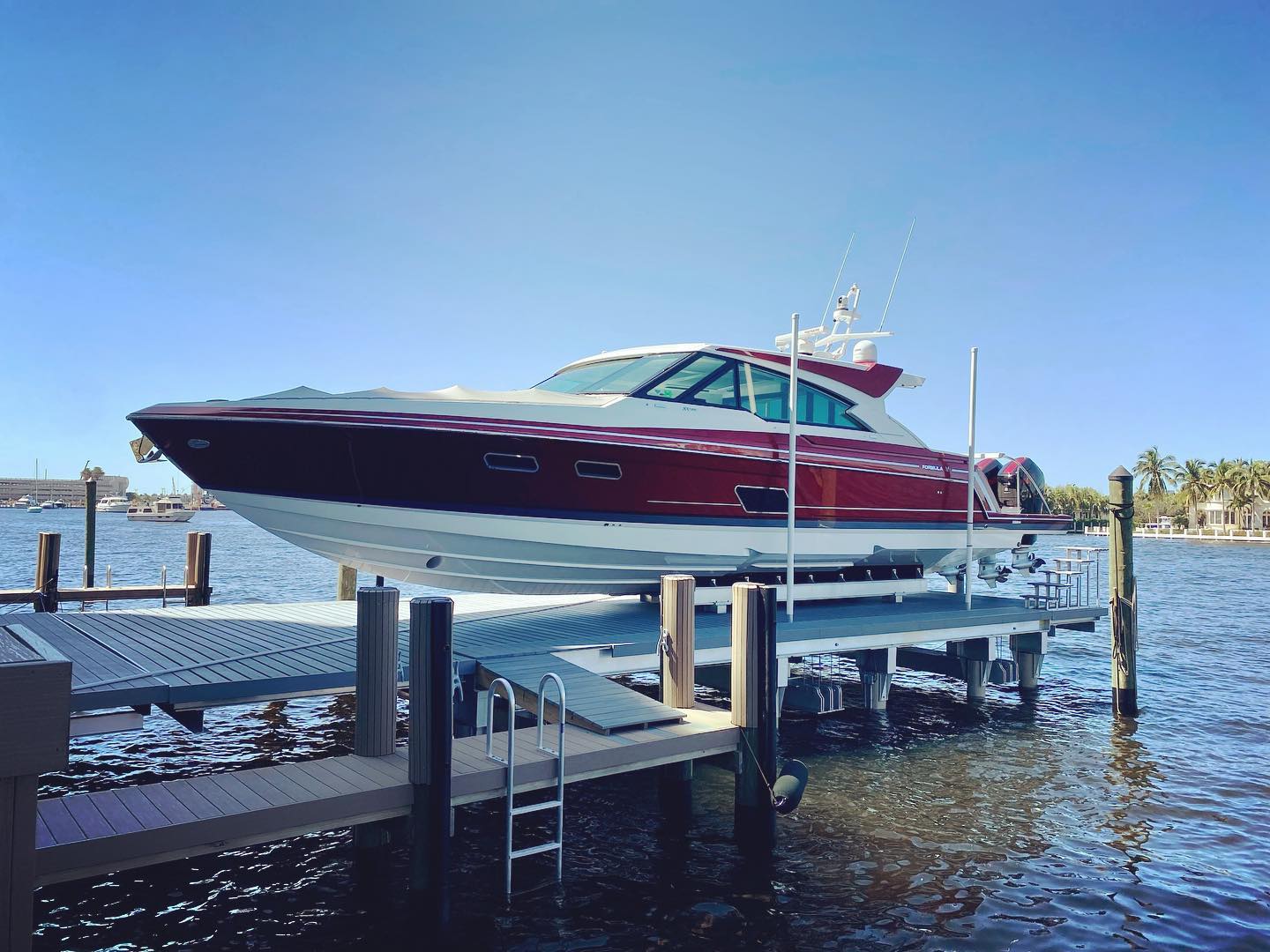

Neptune 4-post boat lift supporting a center console boat

Ideal for Boats, Multiple PWCs, and Custom Waterfront Storage

Platform lifts are especially useful when a property needs more than a single-purpose boat lift. They can be designed for boats, multiple personal watercraft, or custom storage applications where a flat platform-style lift provides better access and organization.

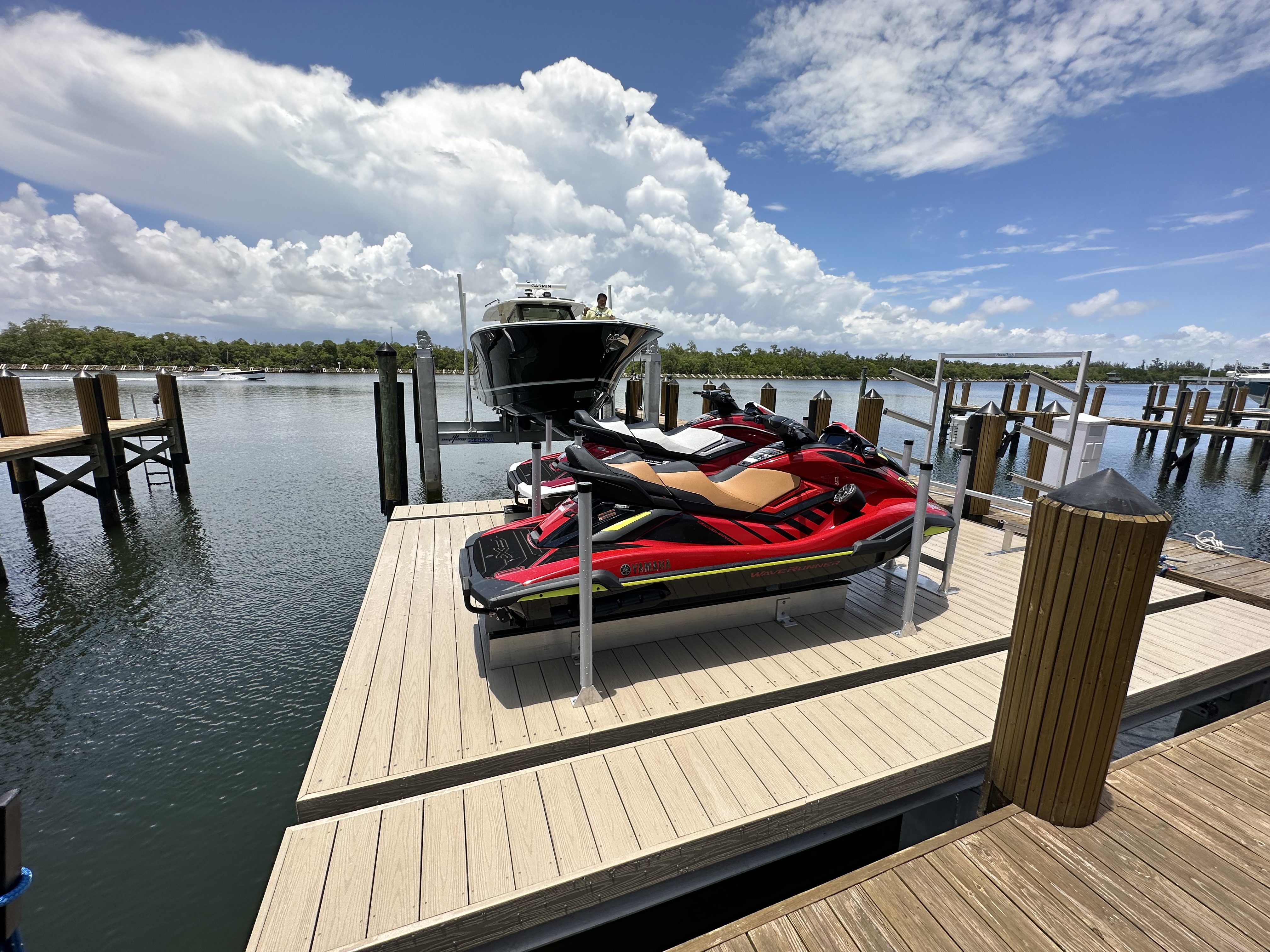

For owners with several jet skis or waverunners, a platform lift can create a dedicated storage area that keeps the watercraft organized and elevated above the water. For boat owners, the platform can provide improved access around the vessel compared with a traditional bunk-only lift.

This flexibility makes Platform Lifts a strong option for families, multi-watercraft owners, luxury waterfront homes, and custom dock projects where storage, access, and appearance all matter.

Built for Demanding Marine Environments

Neptune Platform Lifts are built with aluminum, stainless-steel components, and marine-grade hardware selected for long-term waterfront performance. Depending on the configuration, the system may include sealed Direct Drive gearboxes, stainless motors, SEArmor winders, aluminum structural framing, custom platform framing, decking, and related access components.

Final features and components vary by project requirements, platform configuration, vessel or load requirements, and site conditions.

Luxury Dock Integration

For high-end waterfront properties, the dock is often part of the home’s outdoor living space. The lift should not only work well — it should look intentional.

A properly designed platform lift can help create a more finished waterfront appearance. With the right decking, framing, and access layout, the lift can coordinate with the dock instead of visually competing with it. This is especially true with Stealth configurations, where the system is designed to keep major mechanical elements integrated within the top rail frame.

For waterfront owners who care about both performance and aesthetics, this is one of the biggest advantages of a Neptune Platform Lift.

Talk to a Neptune Dealer About Your Platform Lift

Capacity and Specifications

Platform Lift capacity and specifications are highly application-specific. These systems are typically engineered around the project rather than selected from a standard capacity chart.

Platform size, vessel size, piling layout, structural requirements, decking, access, drive system, and site conditions all affect final design. Specifications should be treated as general examples only, and final configuration should be confirmed with Neptune or an authorized dealer.

Technical Specifications

Stealth Platform Lift Specifications

Capacity Platform Size Lift Style Top Beam Configuration Drive System Typical Application Notes
10,000 lb. 16' x 20' Stealth Platform Lift Invisible / integrated top beam Direct Drive, cable driven Smaller platform lift applications, compact waterfront layouts, or multi-use dock storage Deck-level style platform lift designed for a cleaner waterfront appearance.
22,000 lb. 16' x 45' Stealth Platform Lift Invisible / integrated top beam Direct Drive, cable driven Boat platform lift, larger recreational vessels, custom dock integration Useful where a large platform surface and clean deck-level appearance are desired.
46,000 lb. 20' x 40' Stealth Platform Lift Invisible / integrated top beam Direct Drive, cable driven Large custom boat platform lift or luxury waterfront installation Designed for larger custom waterfront applications requiring substantial platform capacity.
60,000 lb. 17' x 50' Stealth Platform Lift Invisible / integrated top beam Direct Drive, cable driven High-capacity platform lift, large vessel storage, custom luxury dock projects One of the larger example platform lift configurations shown in Neptune materials.

Specifications may vary based on platform size, vessel or watercraft weight, piling layout, decking selection, water depth, and installation conditions.

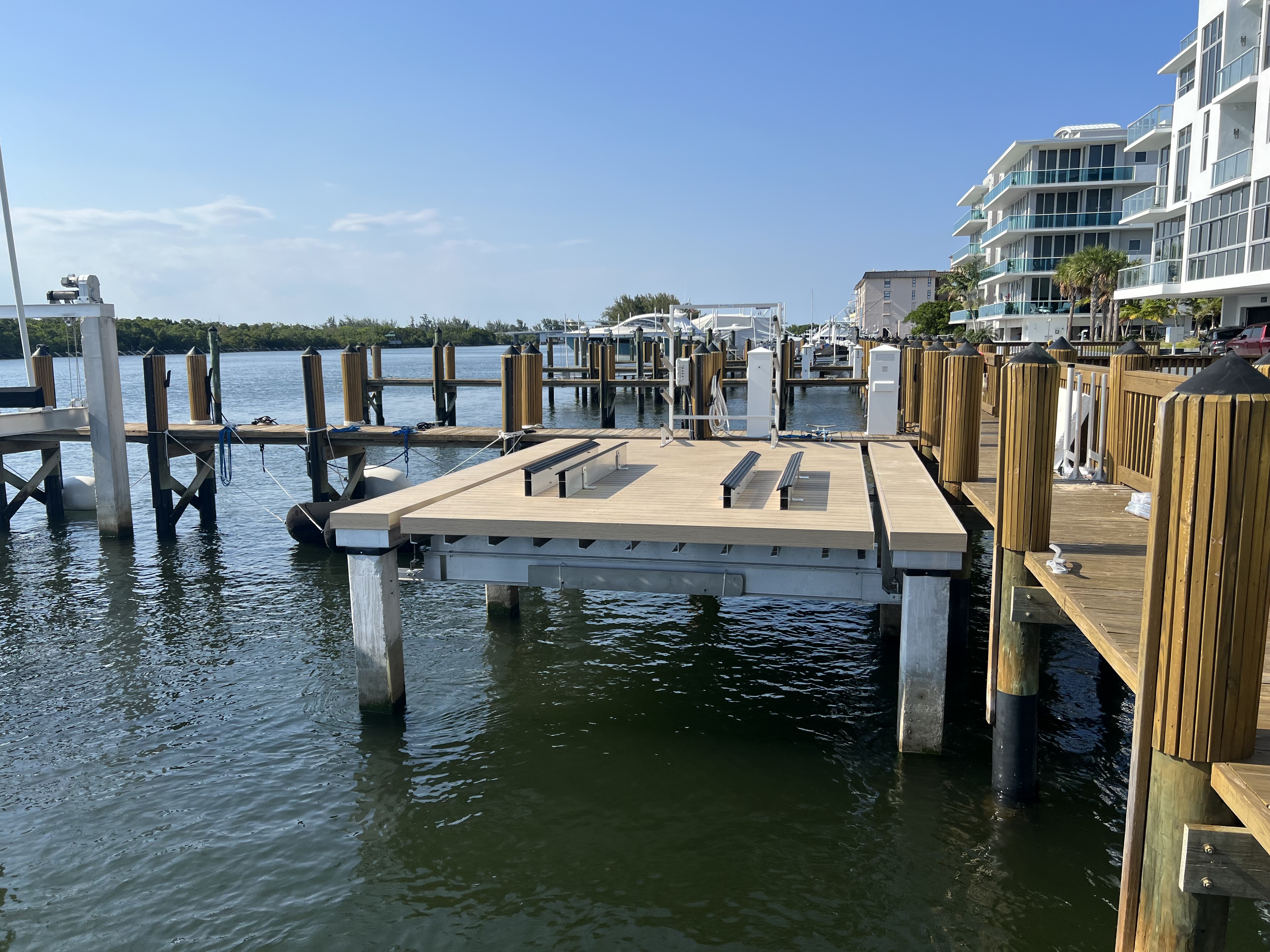

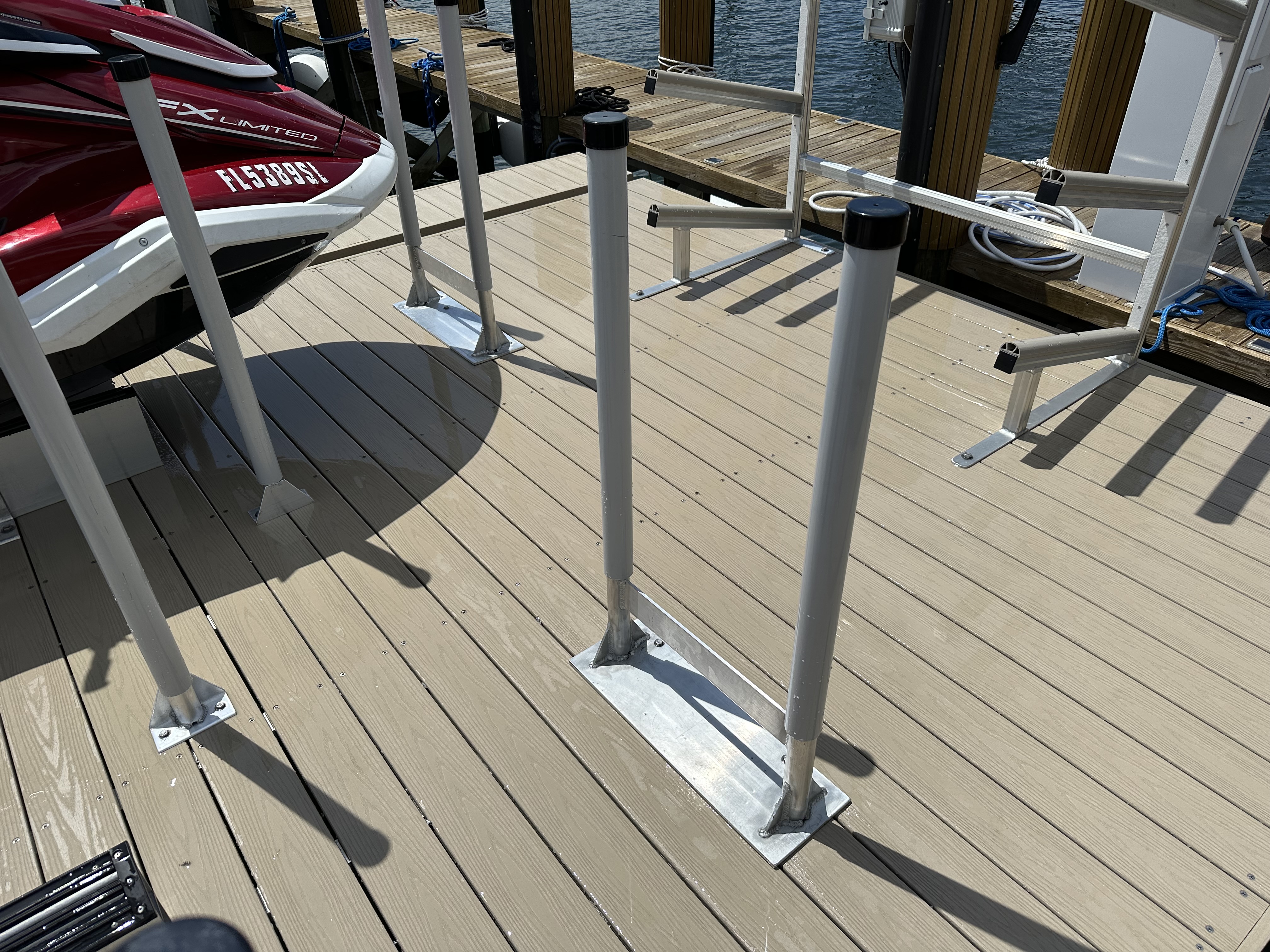

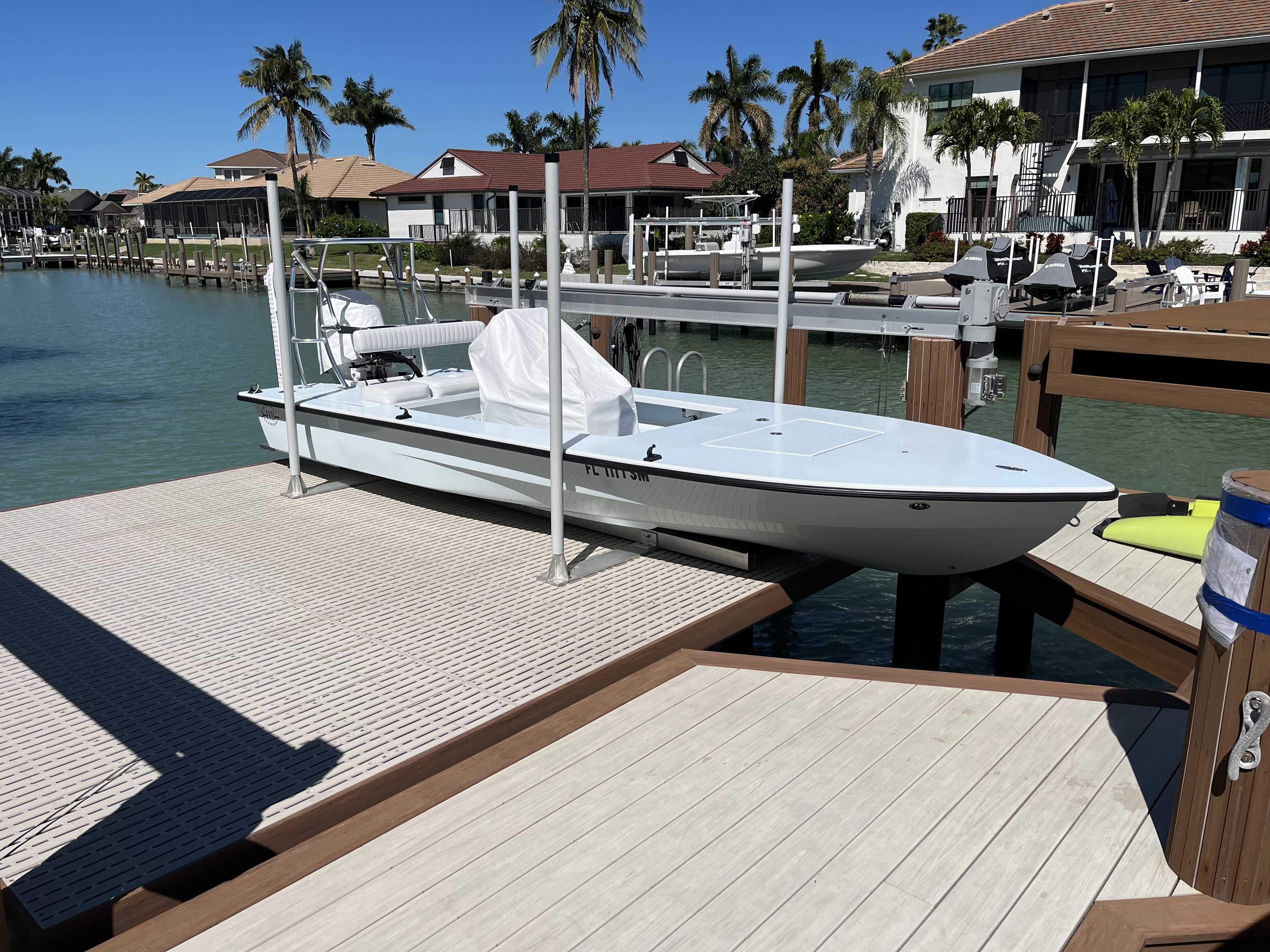

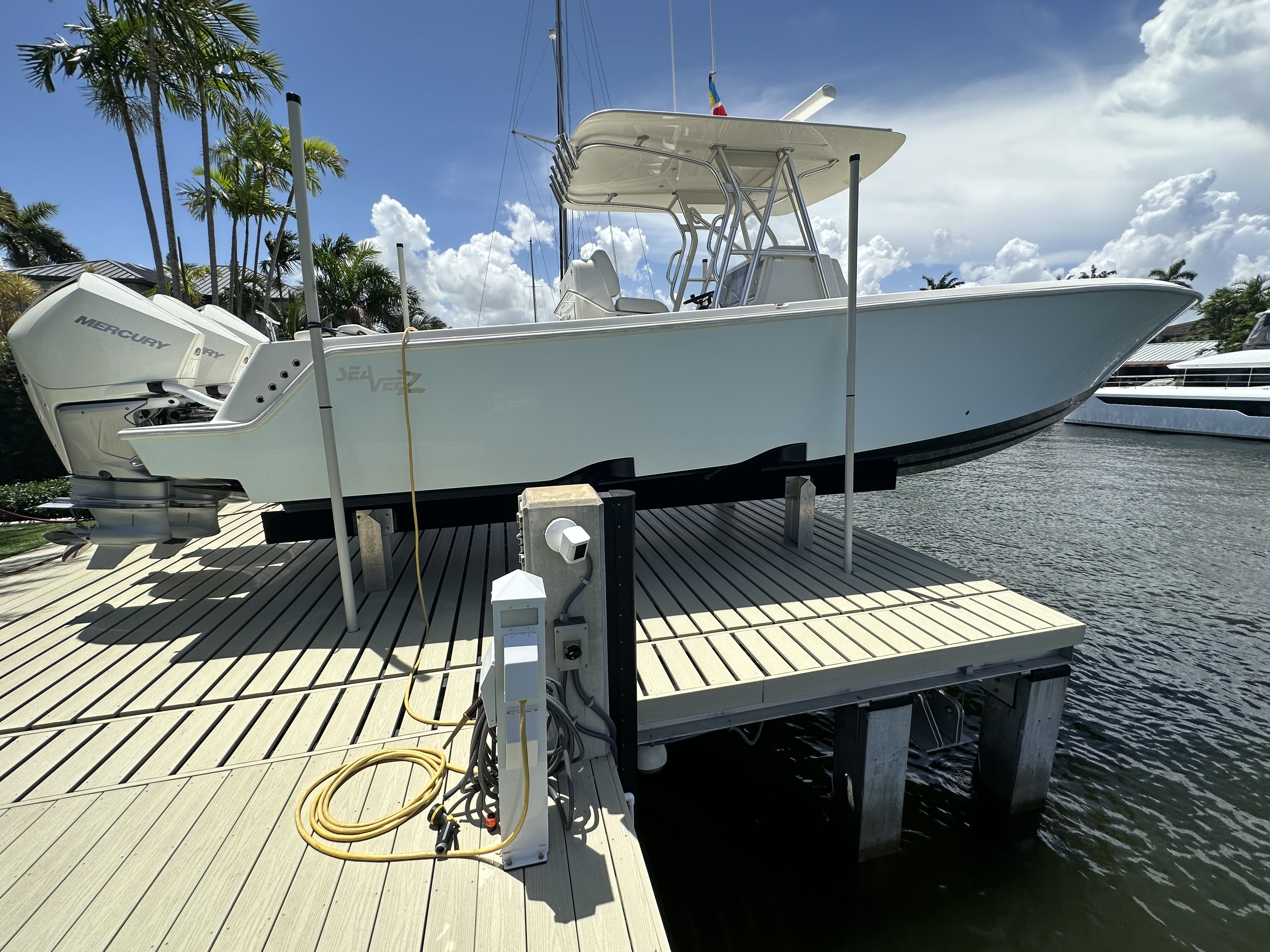

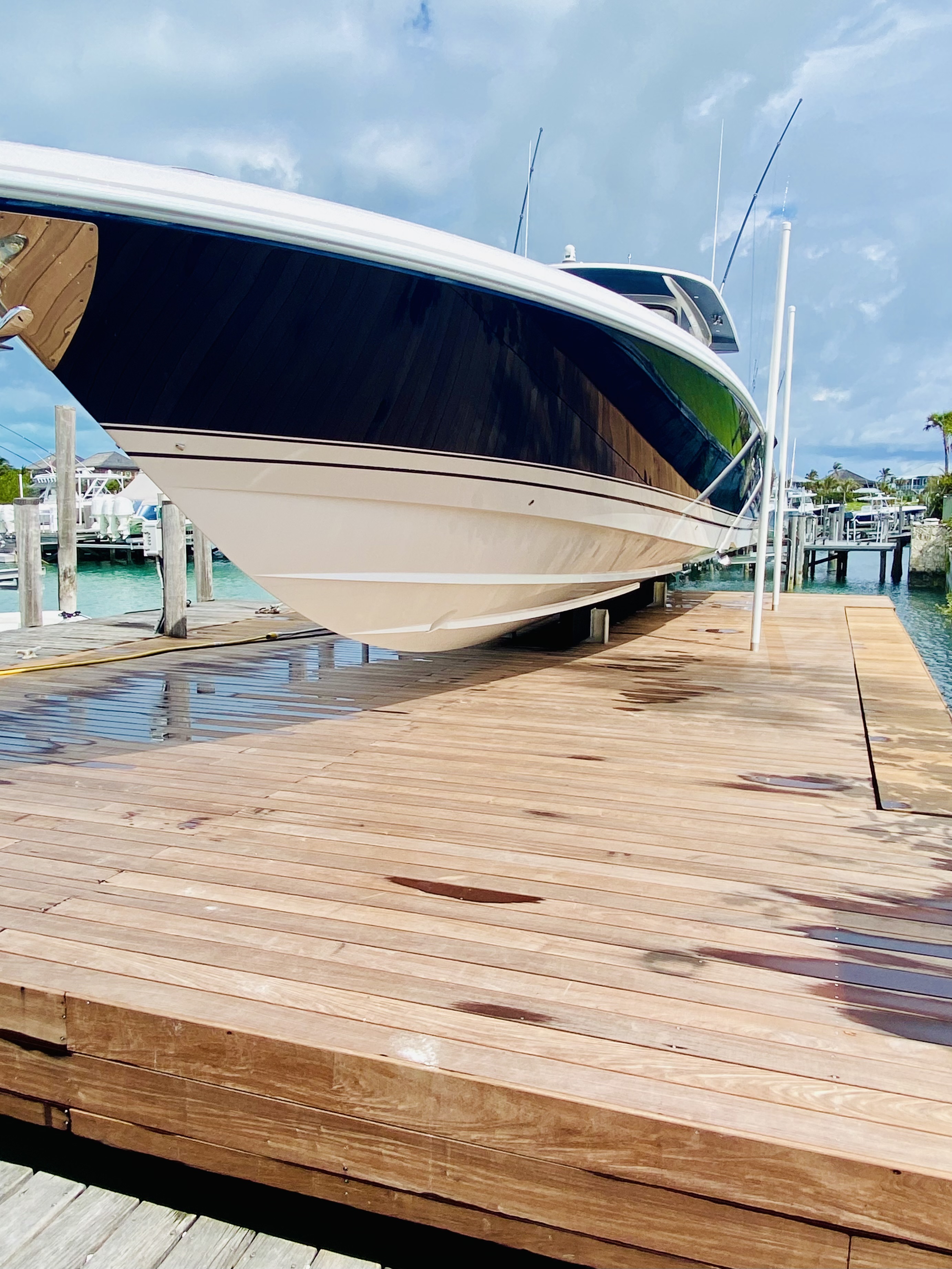

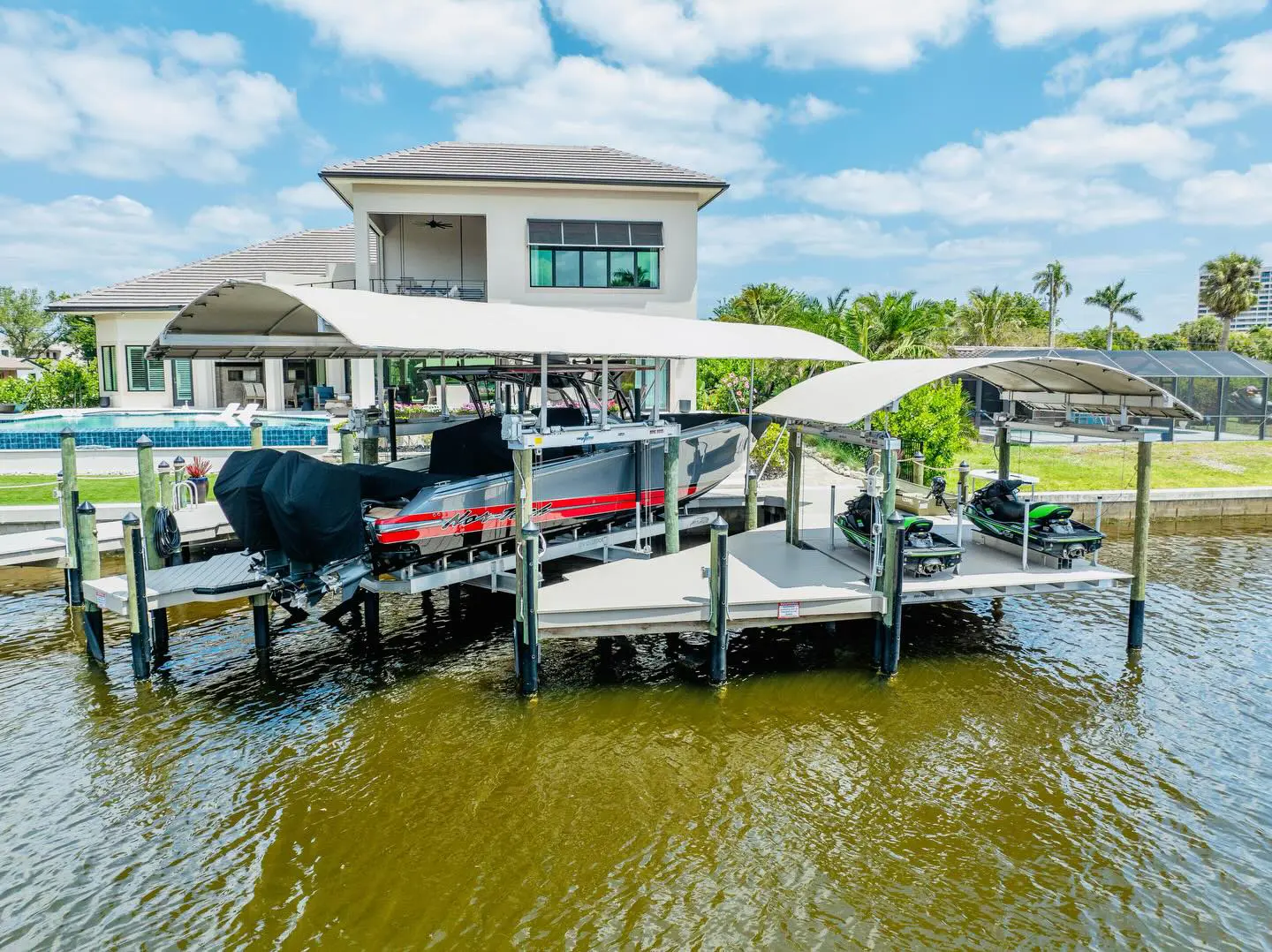

Neptune Platform Lift Installations

Neptune 4-post boat lift supporting a center console boat

Product Resources

Download technical information and planning resources for Neptune lift systems.

Available downloads include:

Stealth Platform Lift Information

Standard Top Beam Platform Lift Information

Learn More:

Because Platform Lifts are highly customized, a site evaluation is an important part of the process. The lift must be designed around the dock layout, vessel or watercraft weight, platform size, water depth, piling placement, tide range, decking selection, and access needs.

A Neptune dealer or lift specialist can review the waterfront layout and recommend the correct platform style, capacity, drive configuration, frame design, and installation approach. For larger platform systems, engineering and installation planning are especially important to ensure the lift performs safely and reliably over time.

Platform Lifts operate in demanding marine environments and should be inspected regularly. Owners should monitor cables, winders, motors, structural framing, platform decking, hardware, and access areas for wear, corrosion, loose fasteners, or damage.

The vessel or watercraft should always be positioned properly before lifting, and the rated capacity should never be exceeded. As with any boat lift system, the lift should not be operated with people on or under the lift unless the system has been specifically designed and rated for that use. Routine rinsing, inspection, and maintenance help preserve long-term performance.

Neptune Boat Lifts provides limited warranty coverage for qualifying products and components. Warranty terms may vary by product, component, and configuration, especially on custom platform lift systems. Owners should review the full warranty documentation for coverage details, exclusions, and maintenance requirements.

Routine maintenance and periodic service remain the owner’s responsibility. Warranty work should be authorized by Neptune Boat Lifts and performed by an authorized Neptune technician or qualified service professional when required.

Depending on the vessel, dock layout, and waterfront goals, another Neptune lift system may also be a strong fit. Owners comparing Platform Lifts may want to explore PWC & Jet Ski Lifts, 4-Post Boat Lifts, Beamless Boat Lifts, Elevator Boat Lifts, Elevator Yacht Lifts, and 8-Post Yacht Lifts.

Each Neptune lift system is engineered for different vessel sizes, property layouts, and waterfront environments.

Is a Platform Lift Right for Your Waterfront?

A Platform Lift may be the right solution if you want a custom lift system that provides more access, cleaner dock integration, or storage for multiple watercraft. It is especially well suited for luxury waterfront homes, custom dock projects, multi-PWC storage, marina applications, and owners who want a more finished platform-style solution.

The best recommendation starts with the property and the watercraft together. A Neptune dealer can review your boat or PWC requirements, dock layout, desired platform size, decking preferences, water depth, piling layout, and access needs to determine the right platform lift configuration.

Talk to a Neptune Dealer About Your Platform Lift

Frequently Asked Questions

A Platform Lift is a custom lift system that raises and lowers a framed platform designed around the vessel, structure, access needs, decking, and site conditions. Neptune Platform Lifts are typically engineered around each application rather than selected from a preset configuration.

A Stealth Platform Lift conceals key lift components within the top rail frame for a cleaner, deck-level appearance. A Standard Top Beam Platform Lift uses top beams mounted above deck level. The right configuration depends on the site, structure, platform design, access needs, and project requirements.

Yes. Platform lifts can be designed for multiple personal watercraft, making them a strong option for homeowners who want organized, elevated storage for several jet skis or waverunners.

Yes. Neptune Platform Lifts can be designed for boats as well as PWCs. The right configuration depends on vessel weight, hull design, platform size, water depth, piling layout, and engineering requirements.

Platform lift capacities vary by project. Neptune’s platform lift materials show examples ranging from smaller 10,000 lb. systems to larger custom installations such as 22,000 lb., 46,000 lb., and 60,000 lb. systems.

Yes. Neptune Platform Lifts are designed for coastal and saltwater environments using marine-focused materials, Direct Drive systems, stainless motors, corrosion-resistant components, and custom structural framing.

Yes. Neptune Platform Lifts can include a full platform frame for the owner’s choice of decking, allowing the lift to coordinate with the surrounding dock or waterfront design.

Yes. Platform lifts are typically custom-designed around the property, vessel or watercraft, platform size, decking selection, water depth, piling layout, and access requirements.
