Elevator Yacht Lifts Engineered for Larger Vessels

Custom side-mounted yacht lift systems built around the vessel, structure, and site.

Neptune Elevator Yacht Lifts are custom-engineered for larger vessels and demanding waterfront applications where an elevator-style lift configuration is the right fit. Each system is designed around the vessel, property, structure, capacity requirements, beam, water depth, and installation conditions.

Request a Yacht Lift Consultation Download Elevator Yacht Lift Specifications

Seawall-Mounted Yacht Lift Systems

A custom lift solution for larger-vessel applications.

Neptune Elevator Yacht Lifts are designed for larger vessels that require the capacity and support of a yacht lift with the layout advantages of an elevator-style system. These lifts are commonly considered for properties with seawalls, canal settings, limited side clearance, or waterfront layouts where an open-sided lift configuration is preferred.

Each application is reviewed based on the vessel, structure, installation conditions, and how the lift will be used over time.

A Neptune Elevator Yacht Lift may be considered when the project requires:

  • A side-mounted yacht lift configuration

  • Open-sided vessel access

  • A lift layout with fewer surrounding pilings than some traditional yacht lift systems

  • Larger-vessel support and custom bunking

  • A seawall, dock, or piling-supported mounting approach

  • Site-specific engineering review

  • Custom drive, track, cradle, and support requirements

Final lift selection should always be based on the vessel and site conditions, not property type alone.

Typical Capacity Range: 20,000 lb – 72,000+ lb custom systems

Designed For: Yachts • Large Offshore Boats • Luxury Waterfront Homes

A Yacht Lift Solution for Seawall and Limited-Clearance Properties

Elevator Yacht Lifts are often selected for waterfront properties where dock layout, seawall structure, canal width, water depth, or access requirements influence the lift design.

Because these systems mount from one side, they can provide a clean, open-sided approach for larger vessels while reducing the amount of structure surrounding the boat. This can be especially valuable when vessel access, property layout, or available piling locations are important considerations.

The right configuration depends on the vessel, beam, loaded weight, track layout, structural support, and installation conditions.

Built for Larger Vessels

Larger boats require more than a standard lift scaled up in size. A yacht lift must account for vessel weight, beam, hull shape, center of gravity, fuel capacity, onboard systems, and how the boat will sit on the cradle. Offshore fishing boats, luxury motor yachts, and large center consoles often carry significant weight from engines, generators, batteries, towers, fuel, water, gear, and equipment.

Neptune Elevator Yacht Lifts are engineered for these larger-vessel requirements. Each system is designed around the specific boat and the waterfront property, with careful attention to load distribution, lifting stability, clearance, and long-term durability.

Rather than treating capacity as the only deciding factor, Neptune evaluates the full application: the boat, the seawall, the water depth, the available space, and the way the owner uses the vessel.

Custom Engineered Around the Boat and Property

Every elevator yacht lift installation is different. A canal home with limited slip width may require a different track angle than an Intracoastal estate with deeper water and more open dock access. A wide-beam yacht may require a different cradle and bunk configuration than an offshore center console with multiple outboards.

That is why Neptune Elevator Yacht Lifts are custom engineered for the vessel and site. Important design factors include vessel weight and beam, hull design, dock configuration, seawall construction, water depth, tidal movement, available slip width, electrical requirements, and access for installation.

Neptune designs each system to match the installation site.

Factors considered during system design include:

  • Vessel weight and beam

  • Dock configuration

  • Seawall construction

  • Water depth and tidal movement

  • Available canal or slip width

This engineered approach ensures proper load distribution and long-term durability. Each lift system is engineered based on vessel weight, hull design, and waterfront configuration.

Built for Demanding Marine Environments

Neptune Elevator Yacht Lifts are built with aluminum and stainless-steel construction for demanding waterfront environments. Each system can be configured with components and options designed to support strength, performance, and durability over time.

Available features and options may include:

  • Aluminum and stainless-steel construction

  • Heavy-duty elevator track systems

  • Direct Drive configurations

  • G6 SuperFast options for selected applications

  • Stainless-steel cables

  • Compact drive units

  • Custom bunking

  • Adjustable guide systems

  • Cable retention systems

  • Complete disconnect switch

  • Sacrificial anodes

  • Underwater bracing for selected deepwater applications

  • Optional SEArmor package for added component protection

Final features vary by capacity, vessel requirements, drive selection, and site conditions.

Smooth Performance With Direct Drive Options

Neptune Elevator Yacht Lifts are available with drive configurations designed to provide smooth, dependable lifting performance for larger vessels.

Direct Drive is built for reliable large-vessel lifting with fewer maintenance concerns than belt or chain-driven alternatives. G3 High Speed provides faster lifting performance for owners who want added convenience. G6 SuperFast is designed for maximum lifting performance in demanding yacht lift applications.

Direct Drive

G3 High-Speed Drive

G6 SuperFast Drive

Dependable lifting performance for everyday use.

Faster lift speeds for larger vessels.

Maximum lifting performance designed for large yacht applications.

Direct drive systems eliminate belts and chains, delivering smoother operation and reduced maintenance over time.

The right drive system depends on the vessel, lift capacity, desired speed, electrical requirements, and overall project design. Neptune’s larger lift materials also show G6 SuperFast options across multiple yacht and elevator yacht applications, making it a strong choice when speed is a priority.

Technical Specifications

Select a drive system to view specifications. Final specifications vary based on vessel weight, beam, hull design, water depth, seawall condition, track angle, bunk configuration, electrical requirements, and selected drive system. Because of this, the most accurate way to choose an Elevator Yacht Lift is through a dealer evaluation.

Direct Drive Specifications

Lift Capacity Top Carrier Lift Beam Motor Power Lift Speed Electrical Cable Travel Bunks Min Piling
4,500 lbs5" x 12' 6" Channel6" x 11'0" I-Beam (2) 3/4 HP46"/min120V / 30A
or
240V / 20A		 5/16" x 20'12'+3" x 8" x 12' Carpeted(4) 8" Pilings
7,000 lbs5" x 12' 6" Channel6" x 12'0" I-Beam (2) 1 HP46"/min120V / 30A
or
240V / 20A		 5/16" x 20'12'+3" x 8" x 12' Carpeted(4) 8" Pilings
10,000 lbs6" x 12' 6" Channel8" x 12'6" I-Beam (2) 3/4 HP23"/min120V / 30A
or
240V / 20A		 5/16" x 32'12'3" x 8" x 12' Carpeted(4) 8" Pilings
13,000 lbs7" x 12' 6" Channel8" x 12'6" I-Beam (2) 1 HP23"/min120V / 30A
or
240V / 20A		 5/16" x 32'12'3" x 10" x 12' Carpeted(4) 8" Pilings
16,000 lbs7" x 12' 6" Channel10" x 14' I-Beam (2) 1 HP23"/min240V / 20A 5/16" x 32'12'3" x 10" x 14' Carpeted(4) 10" Pilings
20,000 lbs8" x 12' 6" Channel10" x 14' I-Beam (2) 1 HP15"/min240V / 20A 5/16" x 48'12'3" x 10" x 14' Carpeted(4) 10" Pilings
24,000 lbs8" x 15'0" Channel12' x 15' I-Beam (2) 1 HP15"/min240V / 20A 5/16" x 48'12'3" x 12" x 18' Carpeted(4) 10" Pilings
30,000 lbs (w/remote)8" x 15'0" Channel12' x 16' I-Beam (4) 1 HP22"/min240V / 30A 3/8" x 50'12'3" x 12" x 20' Carpeted(4) 10" Pilings

Specifications may vary based on installation conditions and optional upgrades.

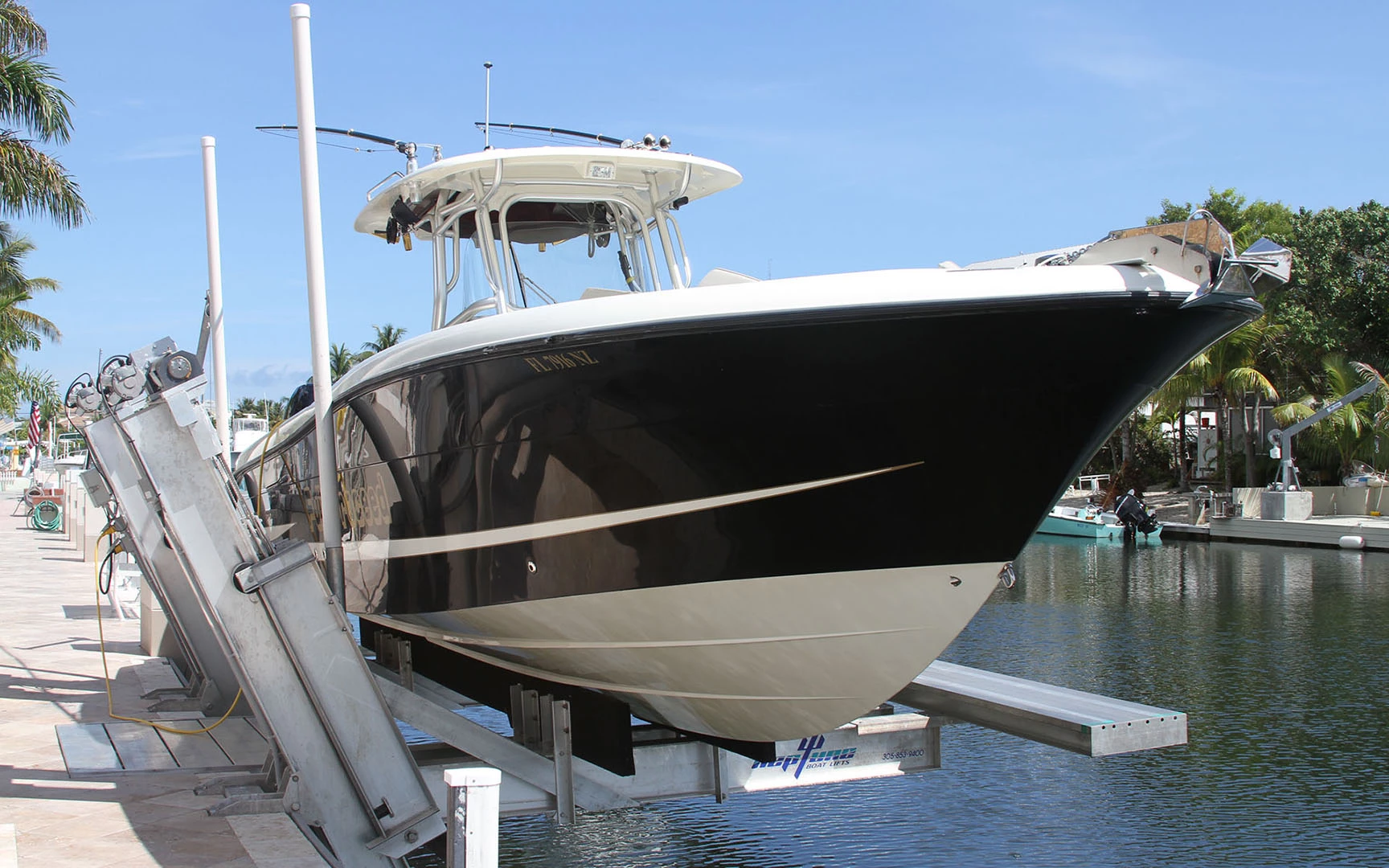

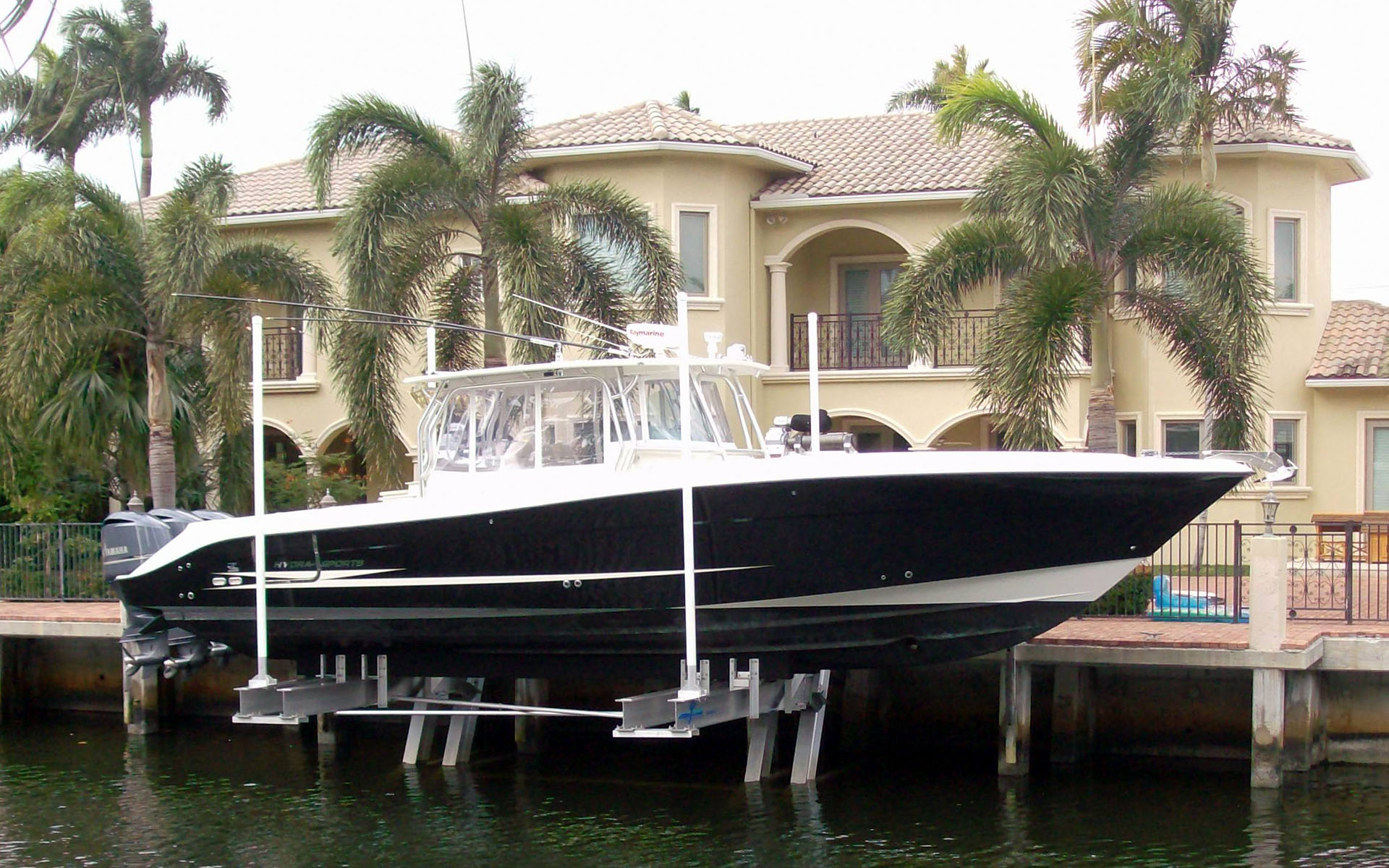

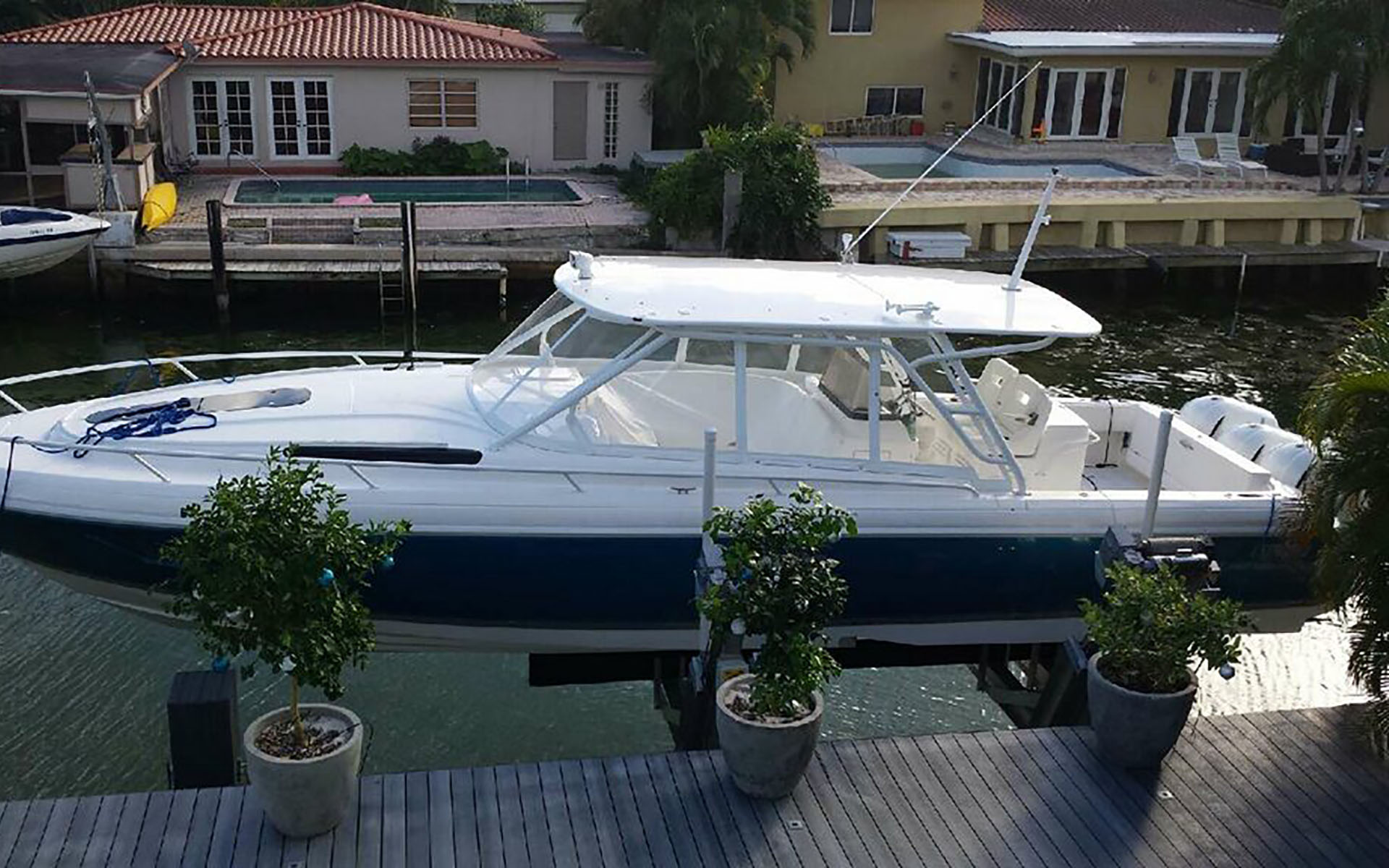

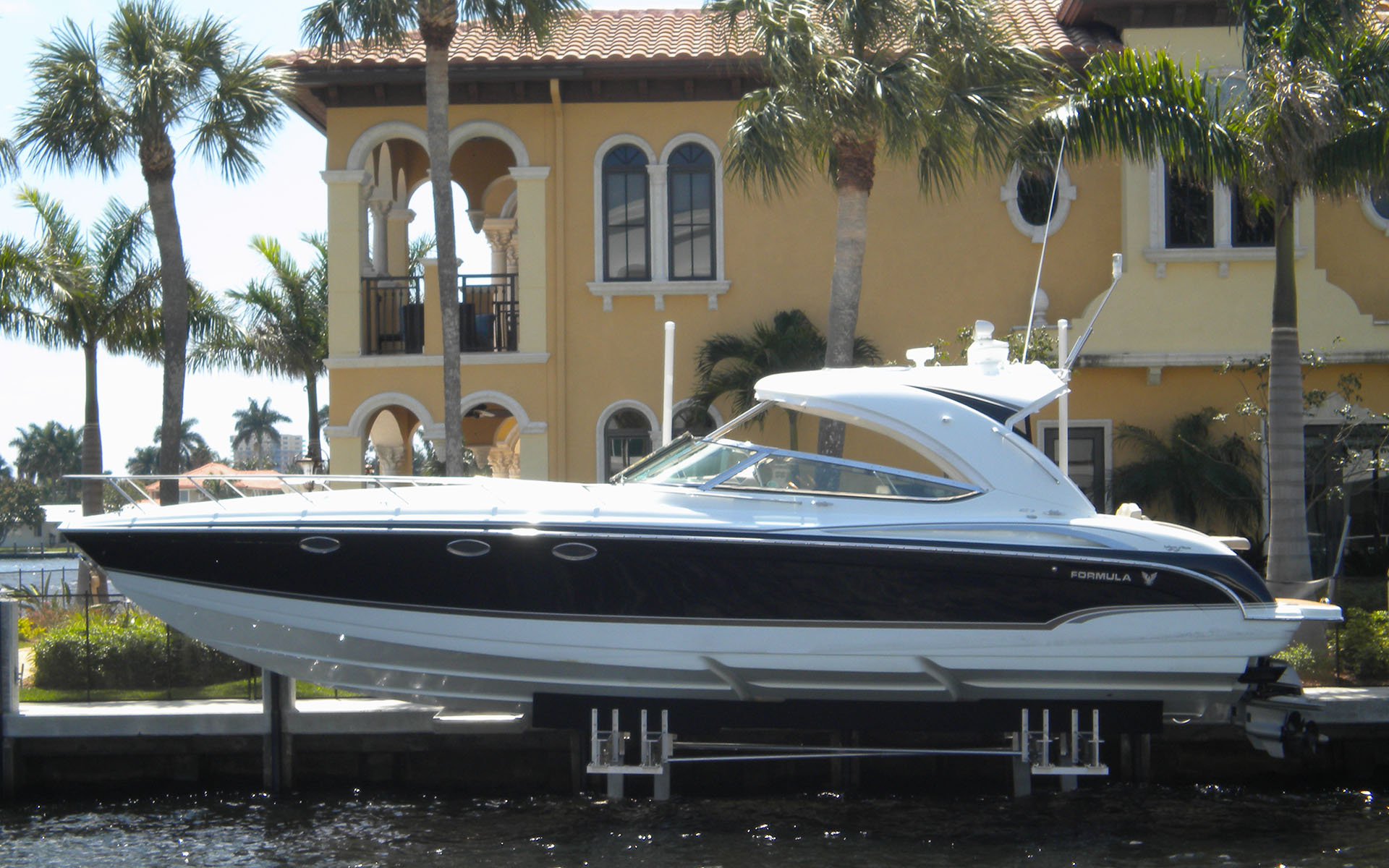

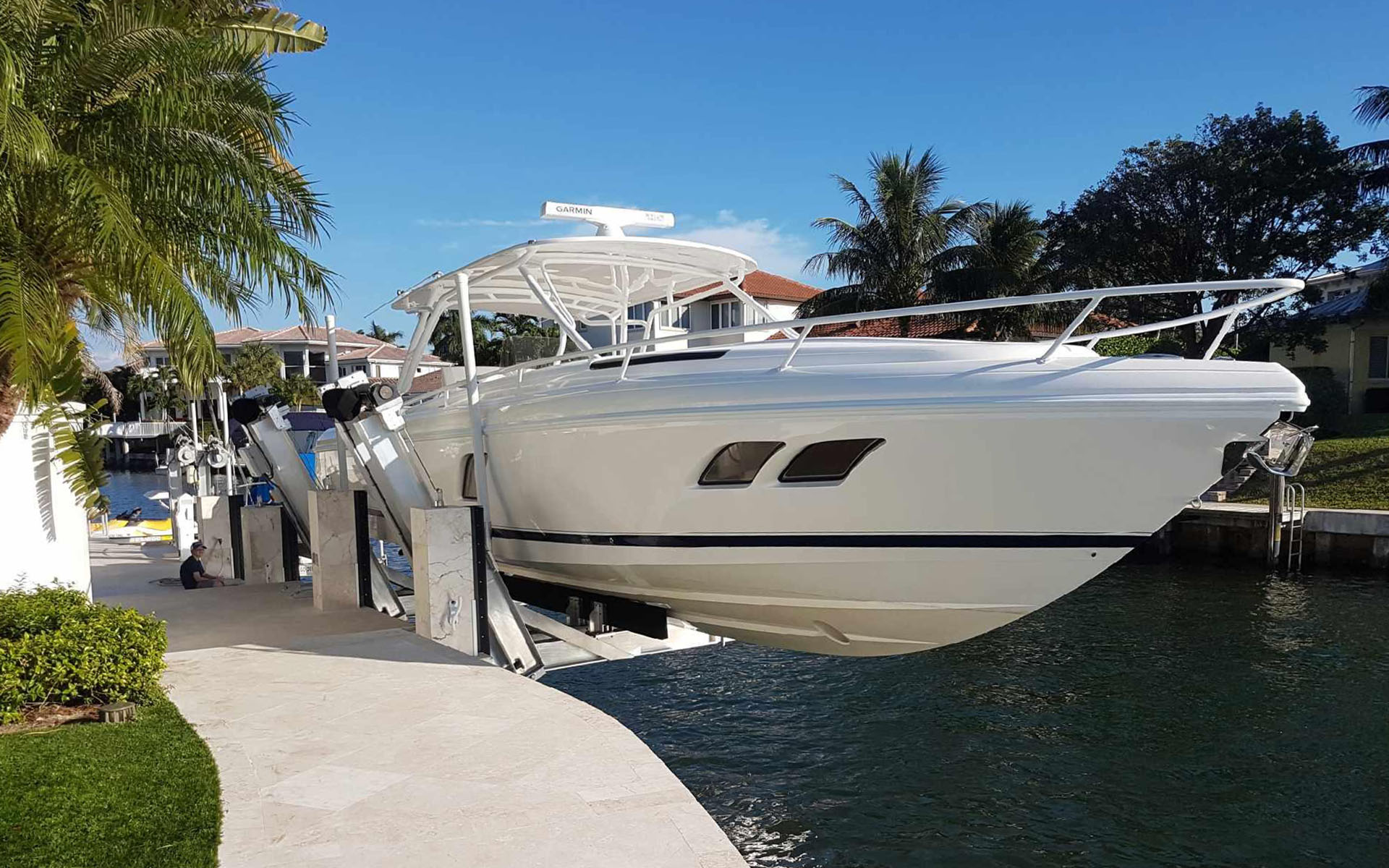

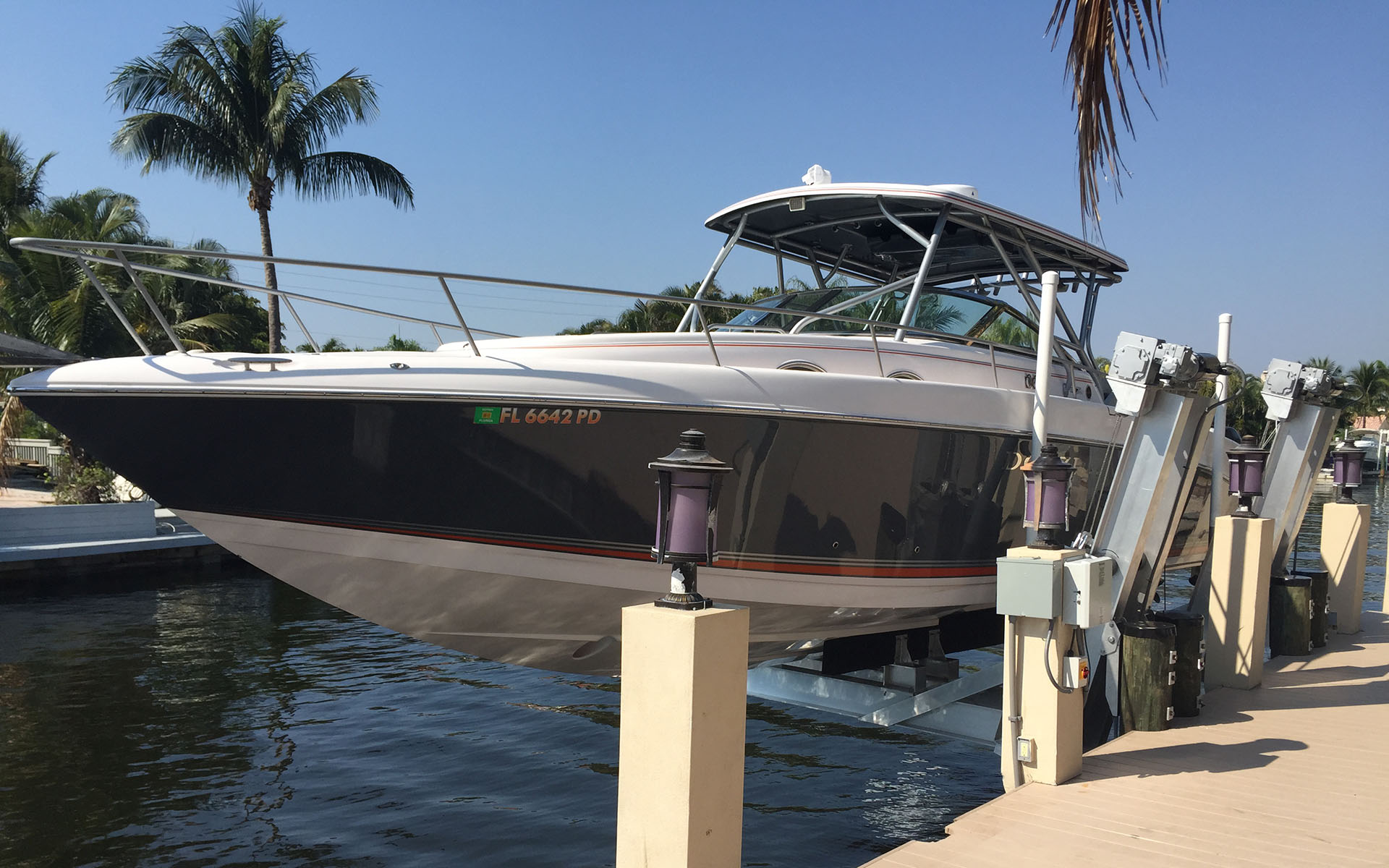

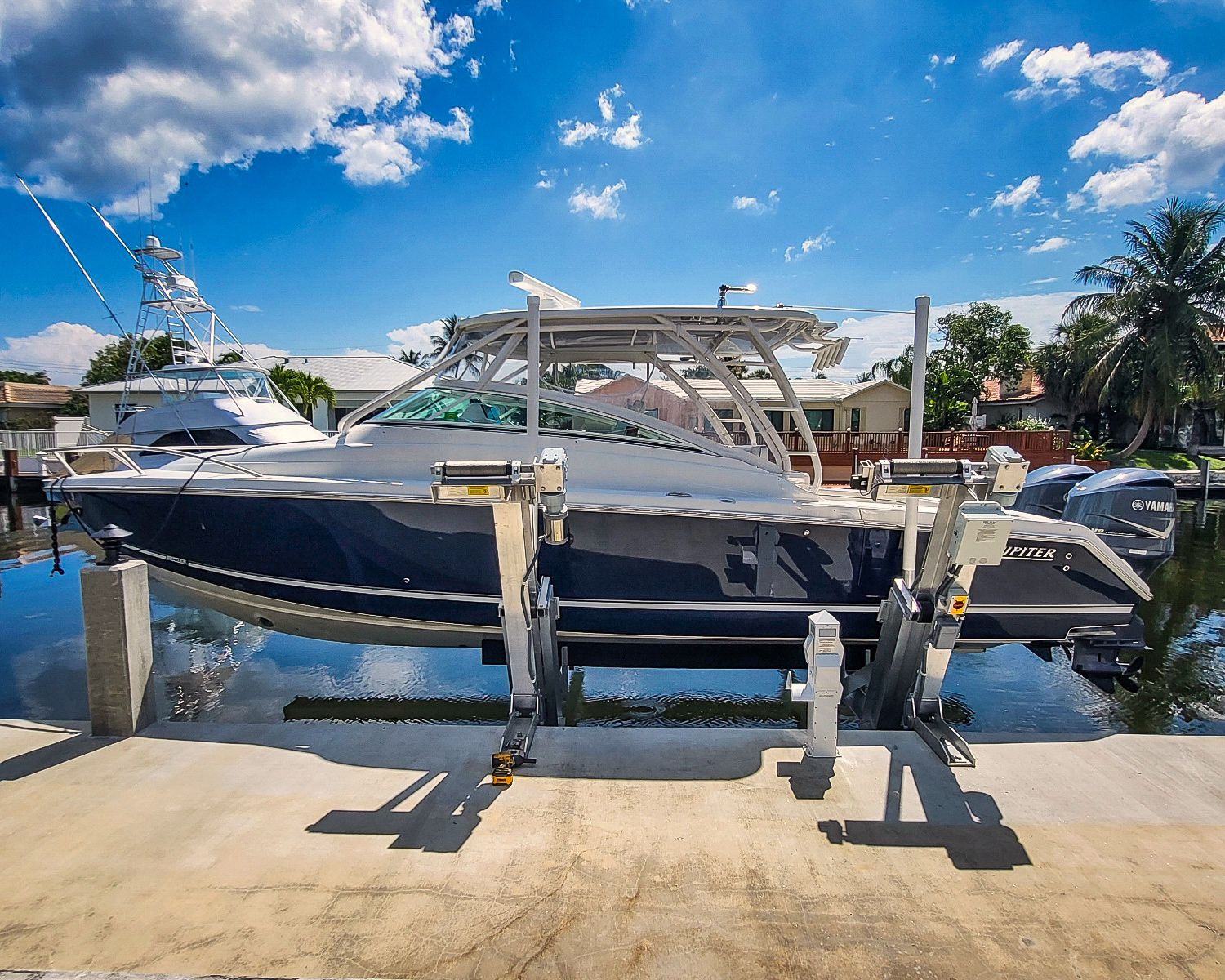

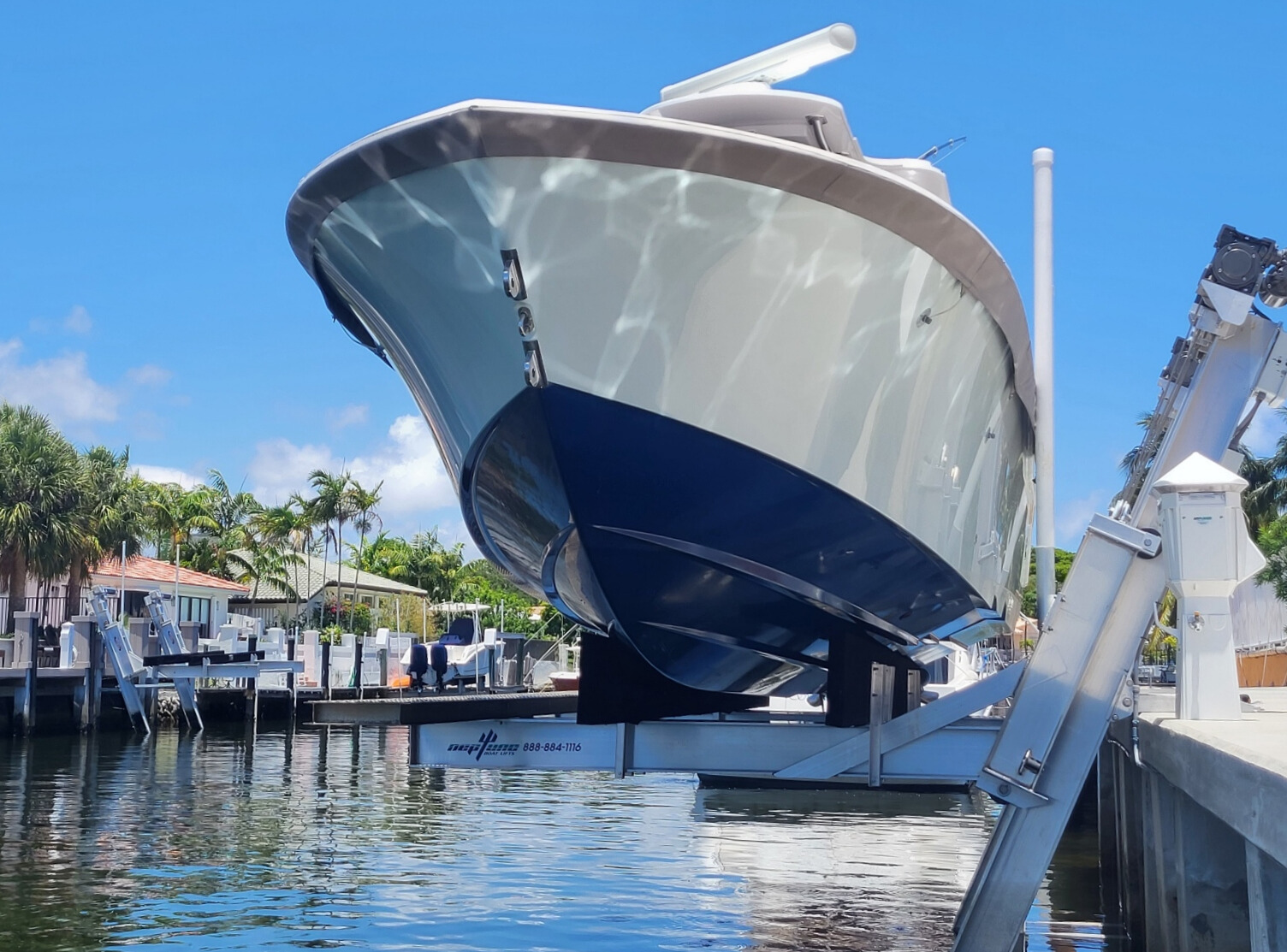

GALLERY

Product Resources

Download technical information and planning resources for Neptune lift systems.

Available downloads include:

Elevator Yacht Lift Specification Sheet  - Direct Drive

Elevator Yacht Lift Specification Sheet  - G3

Elevator Yacht Lift Specification Sheet  - G6

Neptune Lift Planning Guide

Installation Overview Guide

Warranty Information

Learn More:

Large vessels need to be supported correctly every time they are lifted. Hull shape, beam, weight distribution, keel design, outboard or inboard configuration, and onboard equipment all influence how the boat should sit on the lift.

Neptune Elevator Yacht Lifts can be configured with custom bunking to match the vessel’s hull and lifting requirements. Proper bunk placement helps distribute weight, support the hull, and maintain consistent positioning during lifting and storage.

For larger vessels, this level of customization is essential. The lift must be designed not only to handle the total weight, but to support the boat in the right places.

Because an elevator yacht lift mounts to a seawall or piling-supported structure, the property must be reviewed before a final recommendation is made. Seawall strength, dock layout, water depth, tide range, electrical service, vessel clearance, and installation access all influence the design.

A Neptune dealer or lift specialist can evaluate the property and vessel together to determine whether an Elevator Yacht Lift is the right solution. If the site is a good fit, the dealer can help coordinate the information needed for lift design, permitting, production, installation, and commissioning.

Neptune products are sold through licensed marine contractors who permit, sell, install, and service Neptune lifts, helping ensure that each project is handled by professionals familiar with marine construction and Neptune lift systems.

Elevator yacht lifts handle significant vessel weight, so proper operation and regular maintenance are essential. Neptune owner materials emphasize inspecting the lift before use, including cables, sheaves, pulleys, winders, and structural components. If a lift has been idle for more than 90 days, a complete inspection and lubrication of moving parts is recommended before operation.

Owners should never exceed the rated capacity of the lift, never operate the lift with people in or under the boat, and never leave the lift running unattended. The boat should be positioned correctly each time it is lifted, with attention to center of gravity, drainage, and proper cradle alignment.

Routine rinsing, cable inspection, lubrication, anode care, and scheduled maintenance all help protect the lift and preserve long-term performance in saltwater environments.

Neptune Boat Lifts provides limited warranty coverage for qualifying products and components. Current warranty materials state that the structural integrity of aluminum and stainless steel members is warranted for 10 years, gearboxes for 5 years, motors for 2 years, and other components for 1 year. Coverage applies to the original owner and begins upon delivery.

Routine maintenance and periodic service are the owner’s responsibility. Warranty work must be authorized by Neptune Boat Lifts, LLC and performed by an authorized Neptune technician to maintain factory warranty coverage. Full warranty documentation should be reviewed for complete terms, exclusions, and limitations.

Depending on your dock configuration, you may also want to explore other Neptune lift systems.

8-Post Yacht Lifts

Beamless Boat Lifts

Each lift system is engineered for different vessel sizes and waterfront environments.

Neptune elevator yacht lifts are installed throughout South Florida’s coastal communities.

Common installation environments include:

  • Intracoastal waterfront homes

  • Florida canal properties

  • Seawall docks

  • Luxury waterfront estates

  • Limited-width marina slip

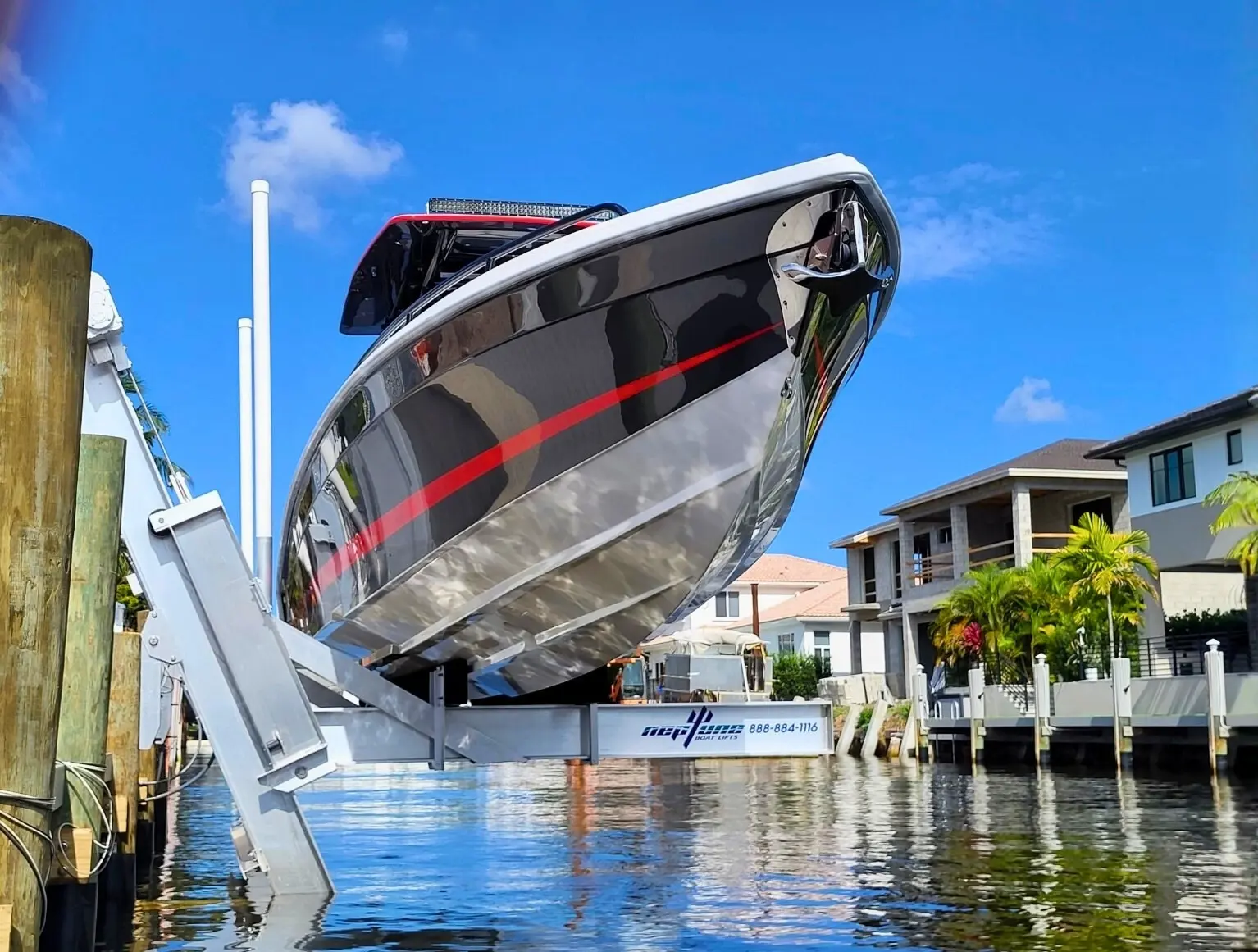

Neptune Elevator Boat Lift_Hero (5).jpg

Work With a Neptune Lift Specialist

An Elevator Yacht Lift may be the right solution if your property has a seawall, limited canal width, restricted piling access, or a dock layout that makes a traditional yacht lift difficult to install. It is especially well suited for larger vessels that require more lifting capacity than a standard residential elevator lift, but where a full 8-post yacht lift layout is not the best fit for the property.

The best recommendation starts with the boat and the site together. A Neptune dealer can review the vessel’s loaded weight, beam, hull design, center of gravity, seawall condition, water depth, slip width, tide range, and electrical requirements to determine the right lift configuration.

Request a Yacht Lift Consultation

Frequently Asked Questions

An Elevator Yacht Lift is a side-mounted lift system designed for larger-vessel applications. It uses elevator-style tracks, arms, cables, cradle components, bunks, and drive units to raise and lower the vessel from one side of the waterfront structure.

An Elevator Yacht Lift may be considered when the property, vessel, structure, or access needs make a side-mounted lift configuration preferable. An 8-Post Yacht Lift may be a better fit when the vessel or site requires additional piling-supported structure around the lift. The right choice depends on vessel weight, beam, hull design, piling layout, seawall or dock structure, water depth, and installation conditions.

Neptune Elevator Yacht Lifts are available in larger-capacity configurations for yacht applications. Final capacity selection should be based on the vessel’s loaded operating weight, not dry weight alone. Fuel, water, equipment, propulsion, batteries, towers, hardtops, stabilizers, and gear should all be considered.

Yes. Elevator Yacht Lifts are often a strong fit for canal homes and limited-width waterfront properties because they can mount along a seawall or piling-supported structure without requiring the same footprint as a traditional yacht lift.

Many Elevator Yacht Lift applications involve seawall or piling-supported mounting conditions, but the structure must be reviewed for the specific project. Tie-back support, track placement, water depth, soil conditions, and installation requirements all affect whether the site is appropriate.

Elevator Yacht Lifts are commonly used for larger offshore boats, large center consoles, luxury motor yachts, cruising boats, and vessels that require higher lifting capacity in a limited-clearance waterfront setting.

Depending on the model and engineering requirements, Neptune Elevator Yacht Lifts may be available with Direct Drive, G3 High Speed, or G6 SuperFast drive configurations.

Yes. Neptune Elevator Yacht Lifts are built for coastal saltwater environments using aluminum and stainless steel construction, stainless steel aircraft cables, corrosion-resistant components, and available SEArmor upgrades.

A Neptune dealer or lift specialist should evaluate the seawall, dock layout, water depth, tide range, vessel weight, beam, and available clearance before recommending an Elevator Yacht Lift.

Beam is a major factor in Elevator Yacht Lift selection. Wider vessels move the center of gravity farther from the elevator arms, which affects loading, support, and final lift configuration. Neptune or an authorized dealer should review the vessel beam, loaded weight, hull design, and site conditions before recommending a system.

Yes. Elevator Yacht Lifts are installation-sensitive systems. Track placement, structural support, tie-back conditions, plumb alignment, water depth, and electrical requirements all need to be reviewed carefully. These systems should be installed by authorized Neptune dealers or qualified marine contractors familiar with Neptune elevator lift applications.

Neptune typically needs the vessel make, model, year, beam, loaded weight, hull design, propulsion, installed equipment, water depth, tidal range, dock or seawall layout, mounting structure, electrical availability, and site photos or drawings when available.
