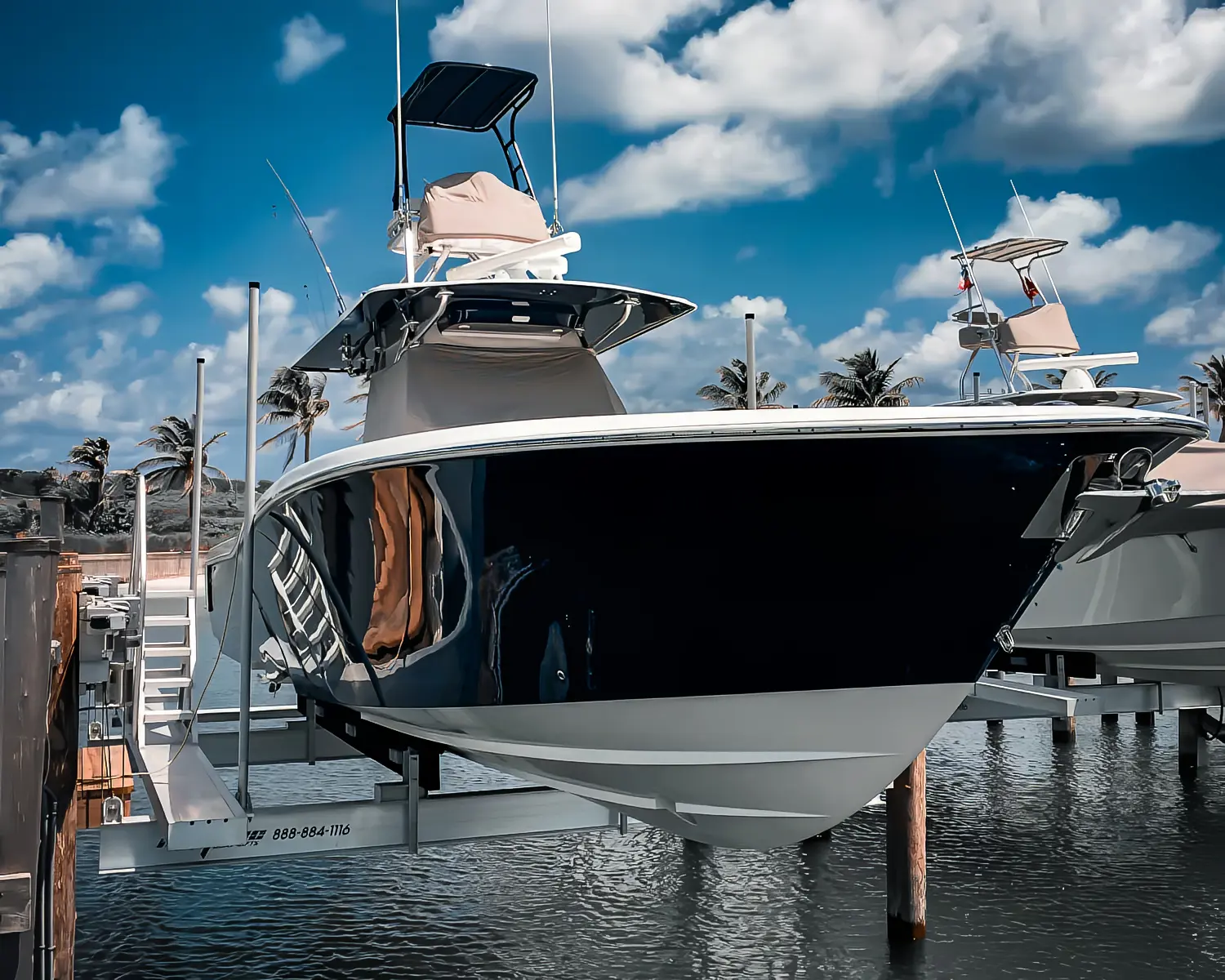

neptune-beamless-5-full 2.jpg

Beamless Boat Lifts for Open-View Waterfront Designs

A 4-post-style lift configuration without top carrier beams.

Neptune Beamless Boat Lifts are designed for applications where the customer wants the function of a piling-supported lift system without the overhead top carrier beams used on a traditional 4-Post Lift.

Each Beamless Lift is configured around the vessel, piling structure, capacity requirements, beam, drive system, and site conditions. The result is a clean, open-view lift design when the vessel is not on the lift, while still supporting the boat through a custom-engineered Neptune lift configuration.

Request a Lift Consultation

A Beamless 4-Post Lift Configuration

Designed around structure, vessel support, and appearance.

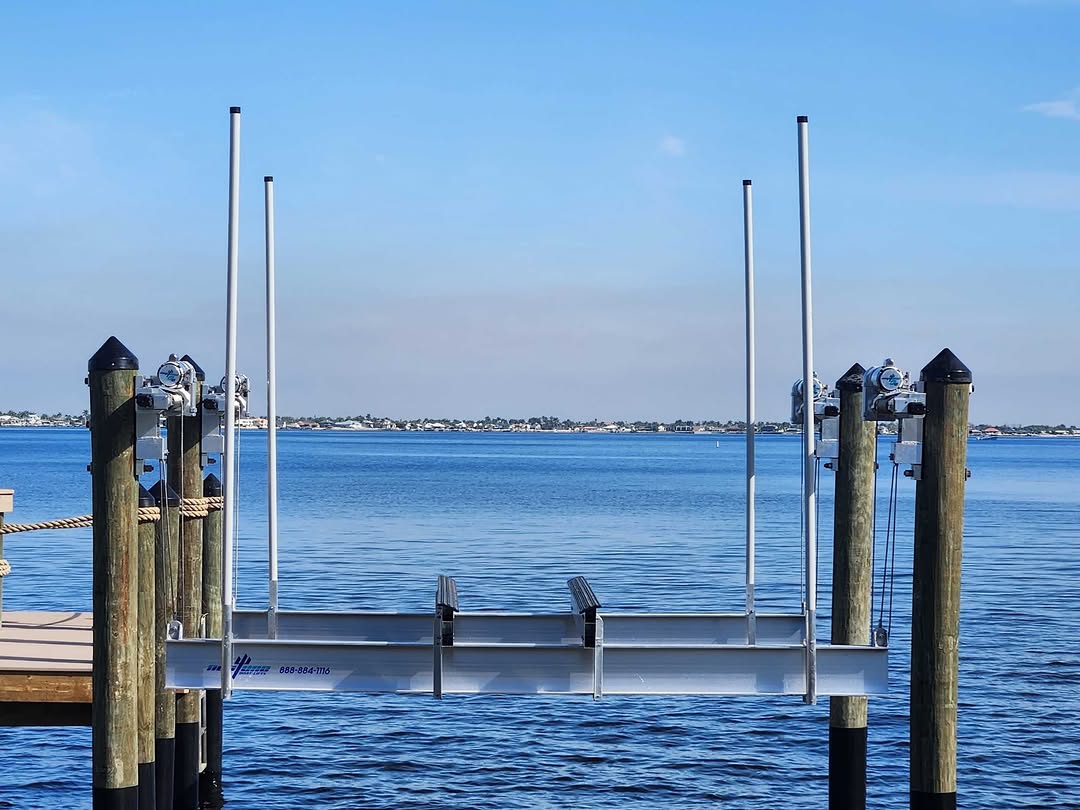

A Beamless Boat Lift removes the top carrier beams used in a traditional 4-Post Lift. Instead, the lift relies more directly on the piling structure and side-mounted drive units to support the lift system.

This design is often selected when the customer prefers a cleaner open-view appearance, especially when the lift is empty. Once the vessel is on the lift, the boat itself becomes the primary visual, so the decision is usually based on a combination of application, structure, vessel support, and customer preference.

A Neptune Beamless Lift may be considered when the project involves:

  • A piling-supported waterfront application

  • A preference for no overhead top carrier beams

  • Proper piling structure to support the lift design

  • Vessel weight, beam, and bunking requirements that match the configuration

  • Drive, electrical, and access considerations reviewed for the specific site

Final selection should be based on the vessel and waterfront structure, not appearance alone.

Structural Support Without Top Carrier Beams

The main difference between a Beamless Lift and a traditional 4-Post Lift is structural.

On a traditional 4-Post Lift, the top carrier beams help tie the piling structure together. On a Beamless Lift, those top beams are removed, which means the piling structure plays a different and more direct role in the overall system.

Because of that, piling condition, placement, size, and structural support are especially important. Neptune Beamless Lift applications should be reviewed around the vessel, piling layout, capacity requirements, electrical needs, and site conditions before final lift selection.

Key considerations may include:

  • Vessel loaded weight

  • Vessel beam

  • Hull design and bunking requirements

  • Piling size, placement, and condition

  • Electrical requirements

  • Drive system selection

  • Water depth and vertical travel

  • Access, catwalk, or boarding needs

  • Site-specific installation conditions

A Cleaner Alternative to Traditional 4-Post Lifts

A Beamless Lift can provide a cleaner visual appearance by removing the top carrier beams from the lift structure. This can make the waterfront feel more open when the vessel is away from the lift or lowered.

The benefit should be understood clearly: Beamless changes the visible structure of the lift, but it does not make the boat disappear when the vessel is raised. For many customers, the value is the cleaner appearance of the lift system itself and the ability to maintain a more open view around the dock.

Built for Demanding Marine Environments

Neptune Beamless Boat Lifts are built with aluminum and stainless-steel construction for demanding waterfront environments. Each system can be configured with Neptune components and options selected around the vessel, structure, and application.

Available features and options may include:

  • Aluminum and stainless-steel construction

  • Side-mounted independent drive units

  • Direct Drive, G3 High Speed, and G6 SuperFast options where applicable

  • Stainless-steel cables

  • Solid aluminum grooved winders

  • Long-life bearing components

  • Aluminum or custom bunking options

  • Heavy-duty guide systems

  • Wireless remote control

  • Limit switch options

  • Self-adjusting cable keepers

  • Catwalk and boarding options

  • Optional SEArmor package for added component protection

Final features and options vary by capacity, drive system, electrical requirements, and project conditions.

Direct Drive, G3 High Speed, and G6 SuperFast Options

Neptune Beamless Boat Lifts are available with multiple direct drive configurations, allowing the lift to be matched to the owner’s desired speed, performance level, and vessel requirements.

Direct Drive provides reliable everyday lifting performance using Neptune’s direct drive double worm gearing system. It is a strong choice for owners who want dependable operation and a clean, efficient lift design.

G3 High Speed offers faster lift operation for owners who want quicker access to the water. It is well suited for boaters who use their vessel frequently and want to reduce lift wait time.

G6 SuperFast is Neptune’s fastest beamless lift configuration, engineered for maximum lifting performance. For owners who prioritize speed and convenience, G6 provides the highest-performance option in the beamless lineup.

Drive options include:

Direct Drive

G3 High-Speed Drive

G6 SuperFast Drive

Reliable lifting performance for everyday applications using Neptune’s double worm gearing system.

Faster lifting speeds designed for boat owners who want quicker lift operation.

Neptune’s fastest lift configuration, engineered with patented G6 gearing technology for maximum lifting performance.

Neptune’s fastest lift configuration, engineered with patented G6 gearing technology for maximum lifting performance.

Technical Specifications

Direct Drive Beamless 4-Motor Specifications

Size Horse Power Volt and Amperage Cable Size Winding Area Vertical Travel Speed Max. Beam Lifter Dimensions Bunks Min. Pile Size
8,000 lbs. (4) 3/4 HP Stainless Steel 240V/30A 5/16" Stainless Steel 8" x 3 Grooved Winders 11' 55" 9' 0" 6" I-Beam 12'0" Aluminum Bunks (4) 10" Driven
10,000 lbs. (4) 1 HP Stainless Steel 240V/30A 5/16" Stainless Steel 8" x 3 Grooved Winders 11' 55" 9' 6" 8" I-Beam 12'0" Aluminum Bunks (4) 10" Driven
13,000 lbs. (4) 3/4 HP Stainless Steel 240V/30A 5/16" Stainless Steel 11" x 3 Grooved Winders 10' 33" 9' 6" 8" I-Beam 12'0" Aluminum Bunks (4) 10" Driven
16,000 lbs. (4) 3/4 HP Stainless Steel 240V/30A 5/16" Stainless Steel 11" x 3 Grooved Winders 10' 33" 11' 0" 10" I-Beam 14'0" Aluminum Bunks (4) 10" Driven
20,000 lbs. (4) 1 HP Stainless Steel 240V/30A 3/8" Stainless Steel 13" x 2.5 Grooved Winders 11' 33" 11' 0" 10" I-Beam 3" x 10" x 14' Carpeted Wood Bunks (4) 12" Driven
24,000 lbs. (4) 3/4 HP Stainless Steel 240V/30A 5/16" Stainless Steel 18" x 2.5 Grooved Winders 11' 19" 12' 0" 10" I-Beam 3" x 12" x 18' Carpeted Wood Bunks (4) 12" Driven
30,000 lbs. (4) 1 HP Stainless Steel 240V/30A 3/8" Stainless Steel 18" x 2.5 Grooved Winders 11' 19" 13' 0" 12" I-Beam 3" x 12" x 20' Carpeted Wood Bunks (4) 12" Driven

Because vessel weight can vary significantly once fuel, engines, batteries, gear, and equipment are included, a Neptune dealer should evaluate the full loaded weight before recommending a beamless lift configuration. Final specifications depend on vessel weight, beam, piling layout, water depth, electrical requirements, bunk configuration, selected drive system, and site conditions.

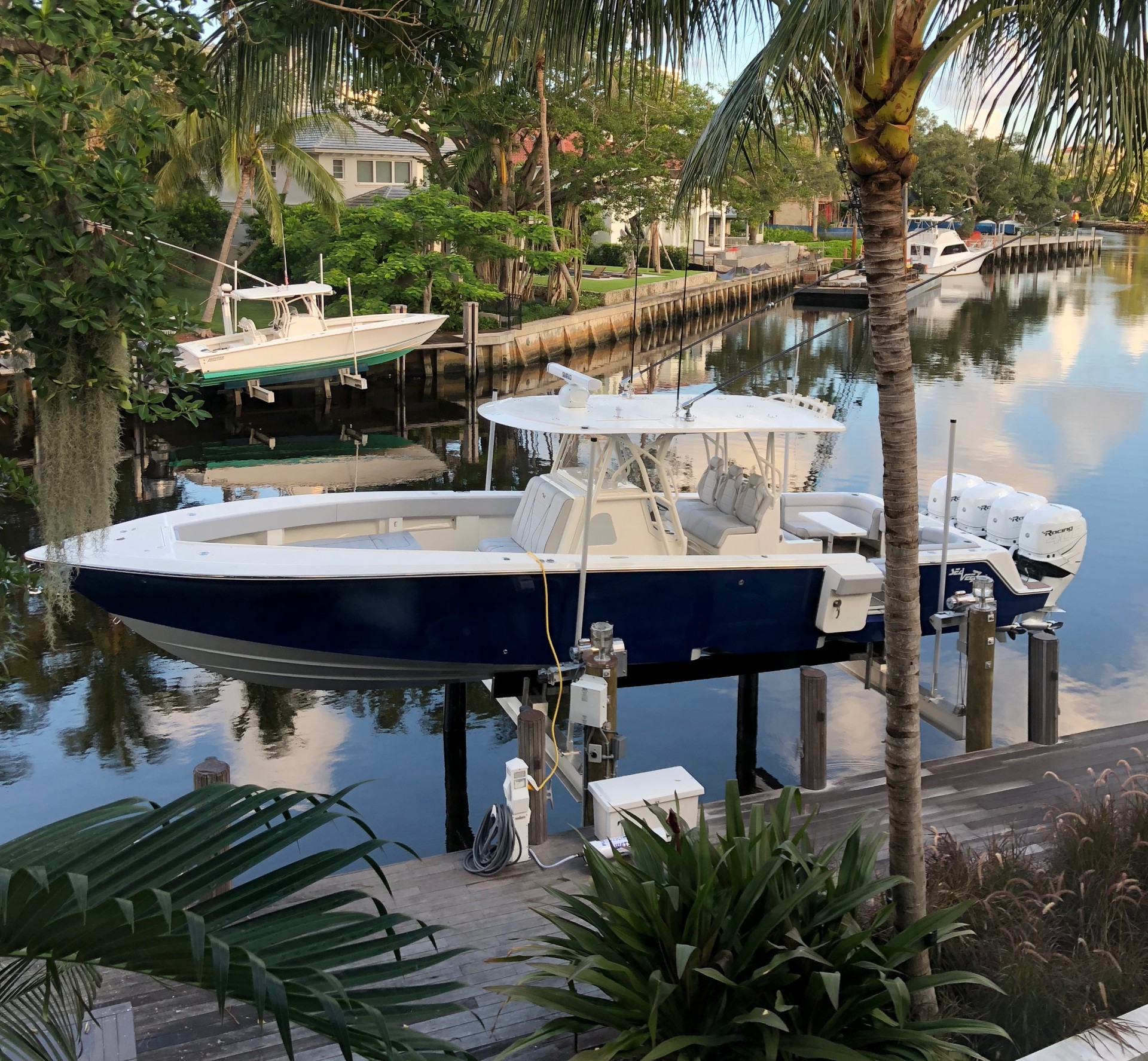

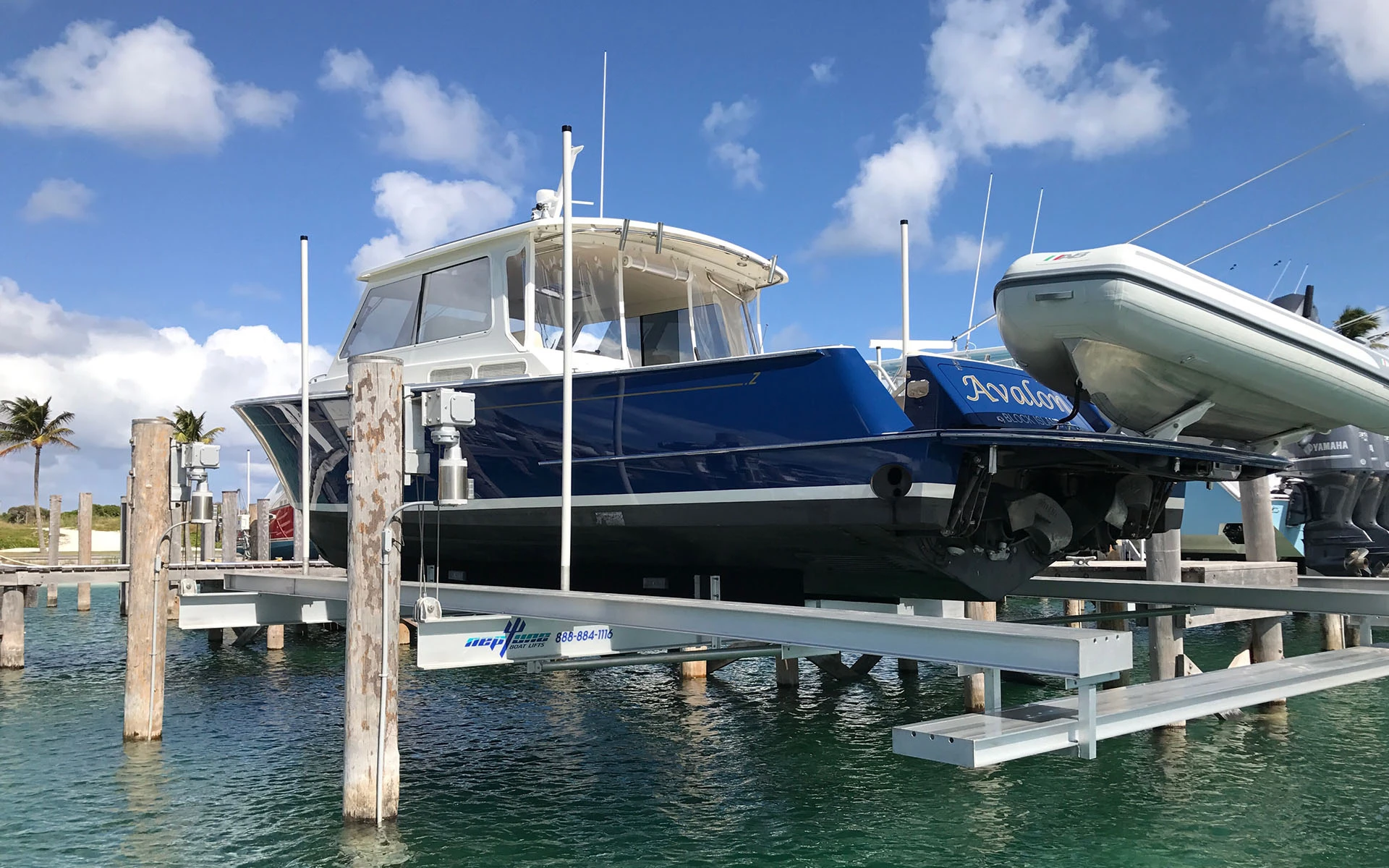

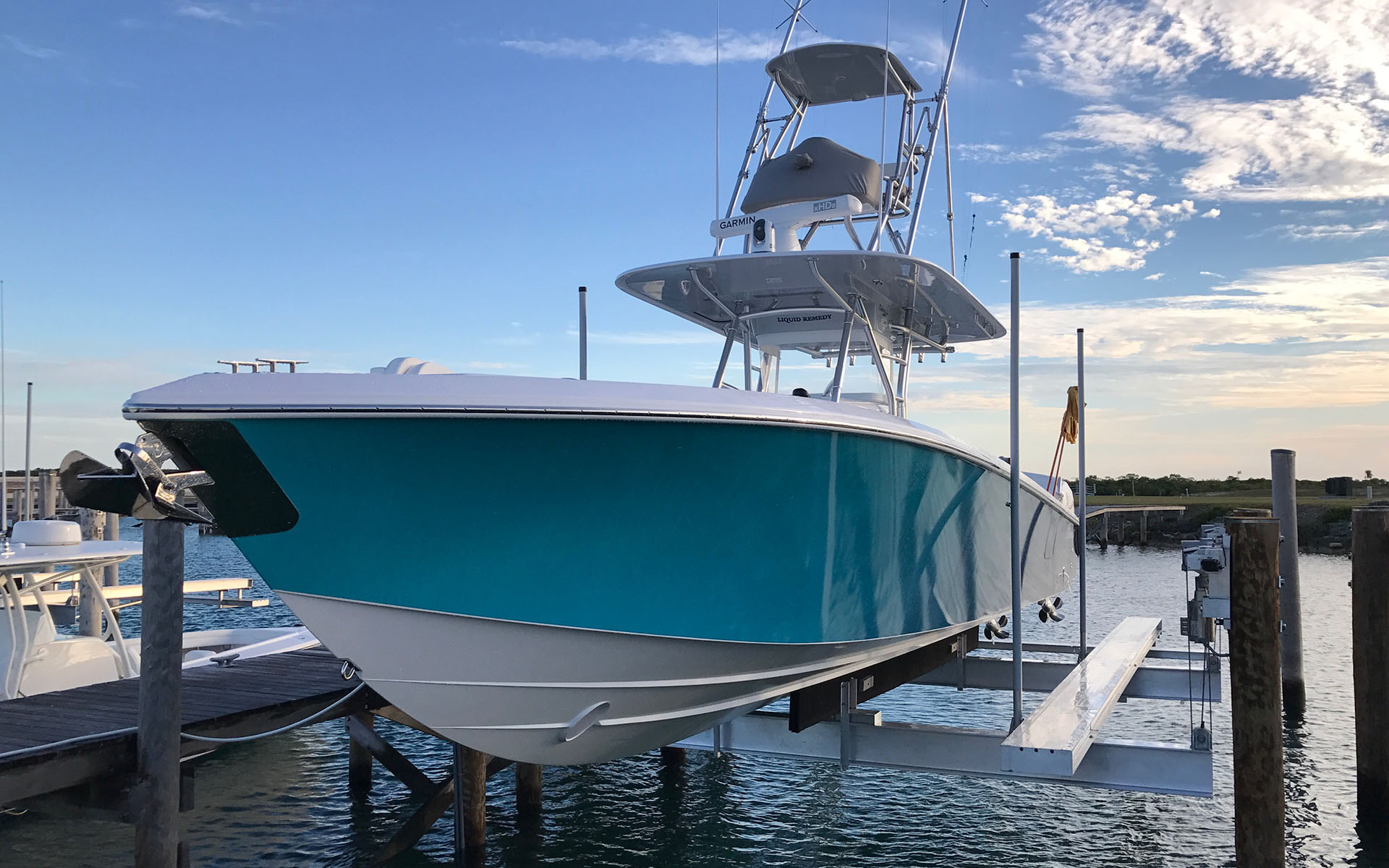

Neptune Beamless Lift Installations

Product Resources

Download technical information and planning resources for Neptune lift systems.

Available downloads include:

Beamless Lift Specification Sheet  - Direct Drive

Beamless Lift Specification Sheet  - G3

Beamless Lift Specification Sheet  - G6

Neptune Lift Planning Guide

Installation Overview Guide

Warranty Information

Learn More:

Beamless lifts are commonly used for a wide range of recreational and offshore boats. They are especially popular with owners who want strong lifting capacity but prefer a cleaner waterfront profile than a traditional overhead-beam lift.

Common applications include center console boats, offshore fishing boats, bay boats, dual console boats, and express cruisers. Depending on configuration, Neptune beamless lifts can support vessels up to 30,000 lbs.

For larger yachts or vessels that exceed the practical range of a beamless system, Neptune also offers 8-Post Yacht Lifts and Elevator Yacht Lifts

A beamless lift depends on proper piling layout, vessel measurements, water depth, and dock configuration. Because the drive units mount directly to the pilings, the installation must be planned carefully to ensure the lift has the structural support, clearance, and alignment needed for safe operation.

Important installation considerations include vessel weight, beam width, piling size and condition, dock layout, electrical service, tidal range, and water depth. Bunk configuration is also important, since the lift must support the hull properly every time the vessel is raised.

A Neptune dealer or lift specialist can evaluate the boat and property together to determine whether a beamless lift is the right fit.

Beamless lifts are designed for marine environments, but regular maintenance is still essential. Owners should inspect cables, winders, pulleys, bearings, motors, bunks, and structural components regularly. Any signs of wear, corrosion, fraying, loose hardware, or damage should be addressed promptly.

As with any boat lift, the vessel should be positioned correctly before lifting, and the rated capacity should never be exceeded. The lift should not be operated with people in the boat, on the lift, or under the vessel. Power should be turned off when the lift is not in use.

Routine rinsing, inspection, lubrication where required, and proper operation help protect the lift and support long-term performance in saltwater environments.

Neptune Boat Lifts provides limited warranty coverage for qualifying products and components. Warranty coverage may vary by product and component, so owners should review the full warranty documentation for complete terms, exclusions, and maintenance requirements.

In general, Neptune warranty materials state that structural aluminum and stainless steel members are covered for 10 years, gearboxes for 5 years, motors for 2 years, and other components for 1 year. Routine maintenance and periodic service remain the owner’s responsibility.

A beamless lift may be the right choice if you want the strength and function of a 4-post lift with a cleaner, lower-profile appearance. It is especially well suited for modern waterfront homes, high-end dock designs, canal properties, and owners who want their boat lift to blend naturally into the property.

The best recommendation starts with the vessel and the dock layout together. A Neptune dealer can review your boat’s loaded weight, beam, hull design, piling layout, dock configuration, water depth, and electrical requirements to determine whether a beamless lift is the right solution.

Depending on your dock configuration, you may also want to explore other Neptune lift systems.

4-Post Boat Lifts

Elevator Boat Lifts

Elevator Yacht Lifts

8-Post Yacht Lifts

Each lift system is engineered for different vessel sizes and waterfront environments.

Is a Beamless Boat Lift Right for Your Waterfront?

A beamless lift may be the right choice if you want the strength and function of a 4-post lift with a cleaner, lower-profile appearance. It is especially well suited for modern waterfront homes, high-end dock designs, canal properties, and owners who want their boat lift to blend naturally into the property.

The best recommendation starts with the vessel and the dock layout together. A Neptune dealer can review your boat’s loaded weight, beam, hull design, piling layout, dock configuration, water depth, and electrical requirements to determine whether a beamless lift is the right solution.

Talk to a Neptune Dealer About Your Beamless Boat Lift

Frequently Asked Questions

A Beamless Boat Lift is a piling-supported lift configuration that removes the top carrier beams used on a traditional 4-Post Lift. The lift uses side-mounted drive units and relies more directly on the piling structure to support the system.

A traditional 4-Post Lift uses top carrier beams that help tie the piling structure together. A Beamless Lift removes those overhead beams, creating a more open-view appearance when the lift is empty. Because the top beams are removed, the piling structure plays a different and more direct role in the lift design.

Beamless Lift capacity depends on the lift configuration, vessel, piling structure, electrical requirements, and site conditions. Final lift selection should be based on the vessel’s loaded operating weight, beam, hull design, bunking needs, and structural support available at the site.

Neptune Beamless Boat Lifts are built with aluminum and stainless-steel construction for demanding marine environments. For high-exposure applications, options such as SEArmor may provide added component protection. Proper installation, maintenance, and site evaluation are important for long-term performance.

Yes. Beamless lifts are often chosen for luxury waterfront homes because they provide strong lifting capability while preserving a clean dock appearance.

Depending on the model and capacity, Neptune Beamless Boat Lifts may be available with Direct Drive, G3 High Speed, and G6 SuperFast drive configurations.

Beamless Lift selection should be based on vessel characteristics rather than boat category alone. Loaded weight, beam, hull design, center of gravity, propulsion, bunking needs, and piling structure all affect whether a Beamless Lift is appropriate.

Piling requirements are especially important for Beamless Lifts because the top carrier beams are removed. Piling size, placement, condition, and structural support should be reviewed before final lift selection. Neptune or an authorized dealer can help evaluate the application.
